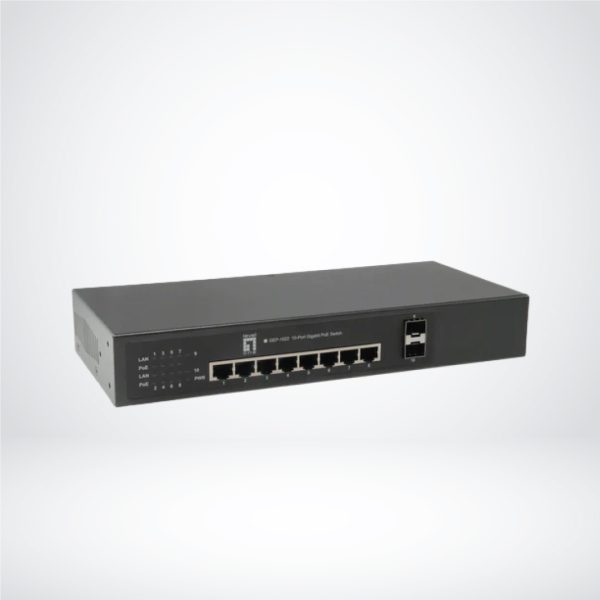

10-Port (8-Port PoE Copper & 2-Port SFP) Gigabit PoE Switch – GEP-1022
• Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, IEEE802.3ab, 1000BASE-T, IEEE
802.3z, 1000BASE-SX/LX, IEEE 802.3az Energy Efficient Ethernet
• Complies with IEEE802.3af/at Standard
• 8-Port supports Power over Ethernet (Port 1~8)
• Built-in two 1000BASE-SX/LX mini-GBIC slots (Port 9~10)
• Supports PoE power up to 30 watts for each PoE port
• Internal Power 65/90/120Watts
• Auto-detection and protection of non-standard PoE device
• Over Current Protection / Over Temperature Protection / Over Voltage Protection
• Remote power feeding up to 100meters
• Made of metal and desktop size
- Overview
- Specification
The GEP-1022 is a 8-Port 10/100/1000Mbps ports IEEE802.3af/at Power over Ethernet + 2-Port 1000Mbps SFP Interface with inner power system.
Following the IEEE 802.3at/af standard makes the GEP-1022 able to deliver Gigabit speed data and up to 30 watts of power per port to 8 PoE powered devices (PDs) with a combined power output budget 60/85/115 watts.
The two mini-GBIC slots built in the GEP-1022 are compatible with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver, uplinked to backbone switch and monitoring center in long distance. The distance can be extended from 550 meters (multi- mode fiber) to 120 kilometers (depends on the specification of fiber transceiver). They are well suited for applications within the enterprise data centers and distributions
Standard | IEEE 802.3 10Base-T
IEEE802.3u100Base-TX / 100Base-FX IEEE 802.3ab/z 1000Base-T/ -SX/LX IEEE 802.3az Energy Efficient Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
|
Copper Ports | 8 10/100/1000BASE-T RJ45, auto-MDI/MDI-X |
SFP Interface | 2 x 1000BASE-SX/LX |
Switch Architecture | Store-and Forward |
Switch Fabric | 20Gbps / no-blocking |
Address Table | 8K entries,
Automatic source address learning |
Share Data Buffer | 128KB |
Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
Jumbo Frame | 9K bytes |
Filtering/Forwarding Rates | 10Mbps port-14,880pps
100Mbps port-148,800pps 1000Mbps port-1,488,000pps |
PoE Standard | IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
PoE Power Supply Type | End-span |
PoE Power Output | Per Port 56V DC, Max. 30 watts Power Pin Assignment 1/2(+), 3/6(-) |
PoE Power Budget | 60/85/115 watts |
LED Indicators | PWR / LAN 1~10 / PoE 1~8 Dimension (W x H x D) 280x122x43mm |
Power Requirement Certification | 100~240V AC, 50/60Hz Certification FCC/CE |
Operating Environment | Operating temperature: 0 – 40°C
Storage temperature: -20 – 70°C Humidity: 20 – 95% non-condensing |
