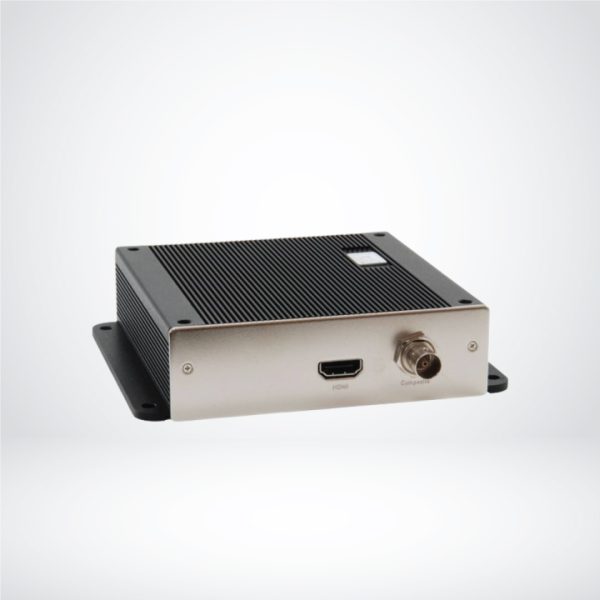

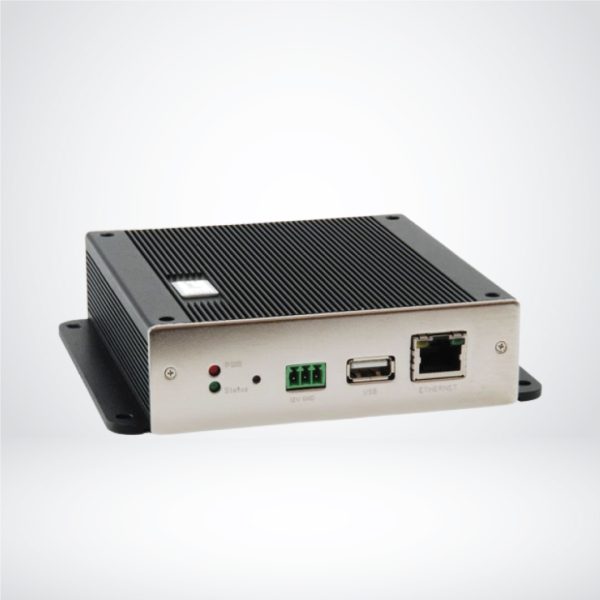

16-Channel Digital Signage Station – DSS-1000

• Dual power support: 12V DC/PoE (IEEE 802.3af)

• BNC connector for analog video output

• Supports 1080p HDMI local display

• Live view of up to 16 channels

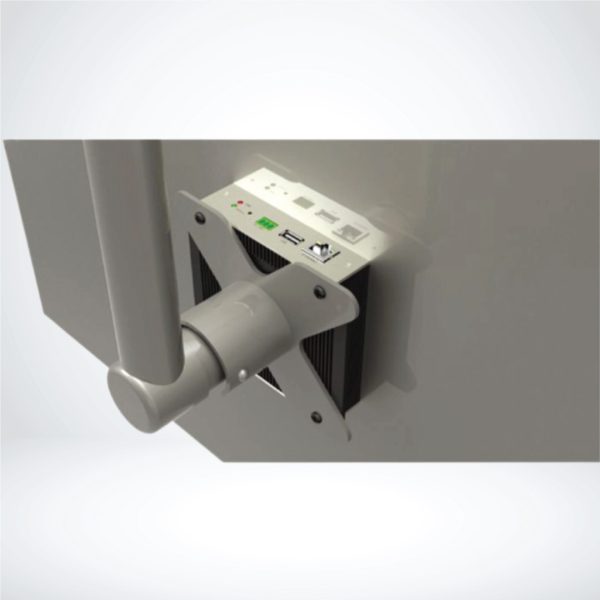

• VESA standards compliant

Compare Compare

Digital Signage Station is a software designed to help display and manage live video surveillancevideos. It can also be used to display a variety of other media forms such as picture slideshows for advertising or to add visual material to announcements. You can leverage the hardware equipment you have already invested in your surveillance system to develop a cost-effective and efficient way to communicate ideas and information. With Digital Signage Station, you can reap the benefits of better security management and business management at the same time.Used in conjunction with DSS-1000 to display live video feeds or other forms of media such a advertisements or announcements.Connect to Digital Signage Station database locally or remotely for easy management.Customized task scheduling.Manage an unlimited number of DSS-1000 media display stations. Require license (per DSS-1000 device);1-Task free license included.

Approval and compliance CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
Operating humidity 10% RH ~ 90% RH
Embedded system Linux
Bandwidth 40Mbps
Indicators Power LED
system LED
Resolution Local: up to 2 Megapixels (1920 x1080)
Remote: up to 10 Megapixels
Standards TCP, UDP, IP, HTTP, RTP, RTSP, ICMP, ARP, UPnP
IEEE 802.3af
Number of video channel 16 (Digital signage channels of up to 4)
Video format H.264
Features Camera live display:
– USB based joystick Hard Drive supported
– Pan, tilt and zoom controls, speed control
– Number of preset points: 32
– Preset Points and Tours: Go/set preset pointsSignage display (via Digital Signage Station 1 software):
– Task Management: Predefine playing sequence, dwell time, upload video clips or pictures for display on selected channels of DSS-1000 devices
– Task Schedule: Customized publishing schedule

* License required for multiple tasks *

Product weight (kg) 0,57
Color Black
EAN 4015867202005
Model Number DSS-1000
Package contents DSS-1000
Netzadapter
Hochstromklemme
Ressource CD (Bedienungsanleitung, QIG)

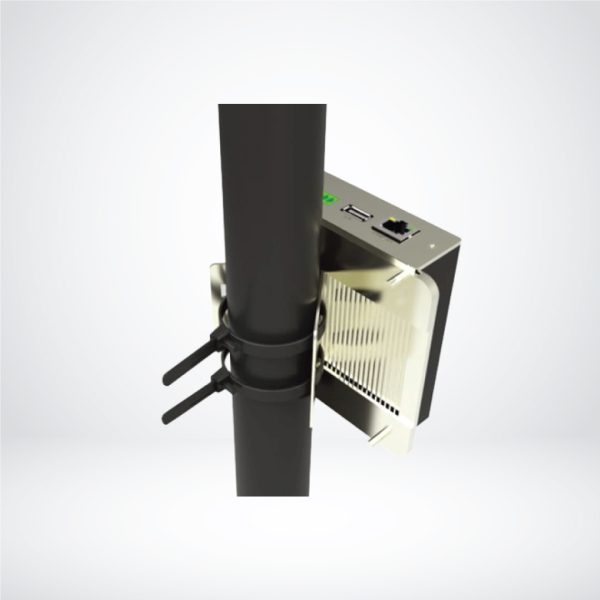

Stangenmontageset
BNC out 1
HDMI out 1
802.3af PoE 1
Dimensions (W x D x H) 114 x 33 x 135 mm
