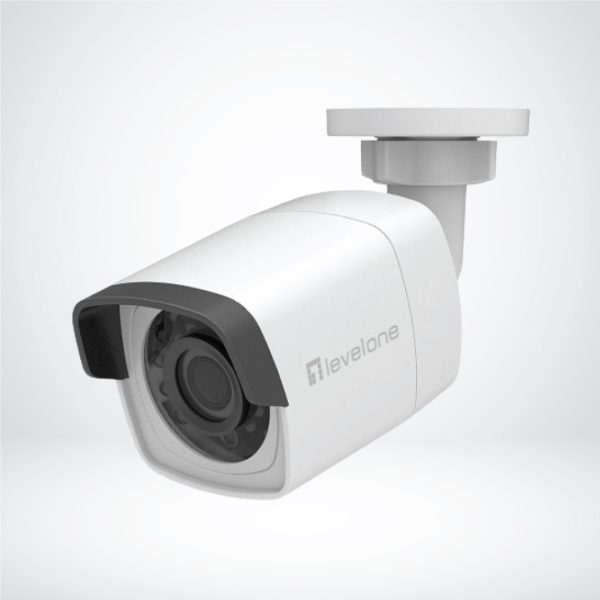

4MP Day & Night Outdoor IP67 PoE Bullet H.265 IP Camera – FCS-5202

• Supports motion detection (Intrusion/camera tampering/line crossing) and event notification

• Video compression: H.264, H.265, MJPEG

• 4-Megapixel high-definition resolution

• Video compression: H.264, H.265, MJPEG

• Weatherproof IP67-rated housing

Compare Compare

The LevelOne FCS-5202 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 4-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5202 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Approval and compliance CE/FCC,IP67,TVS 2000V lightning protection, surge protection and voltage transient protection
Supported browsers Internet Explorer 8.0 or newer (full functionality)
Compatible operating systems Web Browser:
Plug-in required live view: IE8+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local Service: Chrome 41.0+, Firefox 30.0+
Operating temperature -30°C ~ 60°C
Storage temperature 0°C ~ 95°C
Angle of View (°) 4 mm @ F1.6: horizontal FOV: 83, vertical FOV: 45, diagonal FOV: 99
Digital zoom 8X
Image sensor 1/3″ Progressive Scan CMOS
Indicators Power
IR cut filter Yes
IR range Up to 30 meter
Lens 4 mm fixed lens
Minimum illumination (lux) Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Power supply VDC12V/1A,PoE 802.3af
Resolution 50Hz:25fps (2688 * 1520, 2560 * 1440, 2304 * 1296, 1920 * 1080)
60Hz: 30fps (2688 * 1520, 2560 * 1440, 2304 * 1296, 1920 * 1080)
Shutter time 1/3 s to 1/100,000 s
Storage capacity Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Video format H.265 /H.264 / MJPEG
Weatherproof rating IP67
Features One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Protocol : SNMP V1/V2/V3, IPv4
Security : IP filter, Digest authentication
Lens : 3.6 mm fixed lens
Number of Clients : 20
Account levels : Administrator, Operator, User
Digital zoom : 16X
Product weight (kg) 0,5
Color White
EAN 4015867207758
Model Number FCS-5202
Package contents FCS-5202
Screw Kit
Quick Installation Guide
Resource CD (User Manual, Utility, QIG)
Camera Type Bullet
Resistance Weatherproof
Zoom Type Fixed
IR Leds for night vision Yes
PoE Supported Yes
Max. Resolution 4 Megapixels
IP Camera series GEMINI
Power consumption DC12V , PoE (802.3af),Max. 6W
Dimensions (W x D x H) 154 x 60.5 x 70 mm
