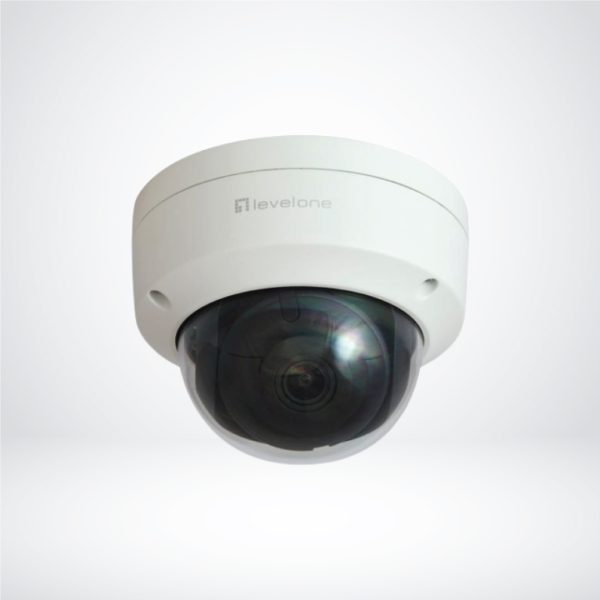

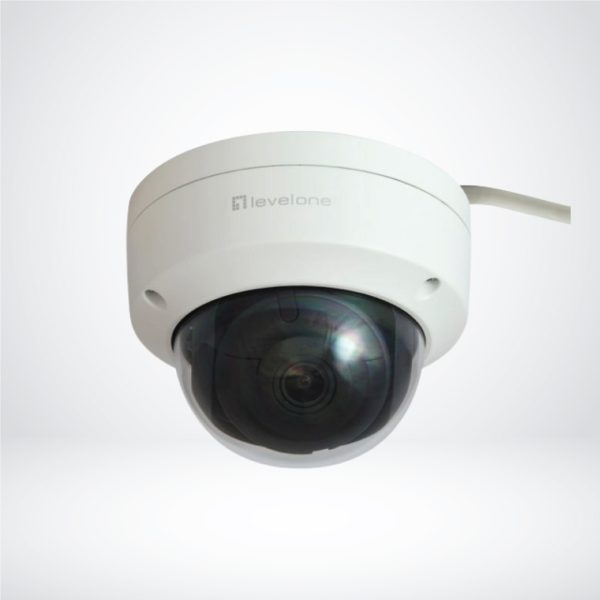

4MP Day & Night Vandalproof IP67 Rated PoE Dome IP Camera – FCS-3403

• Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments

• Free CMS (Central Management System) software with 64-channel license

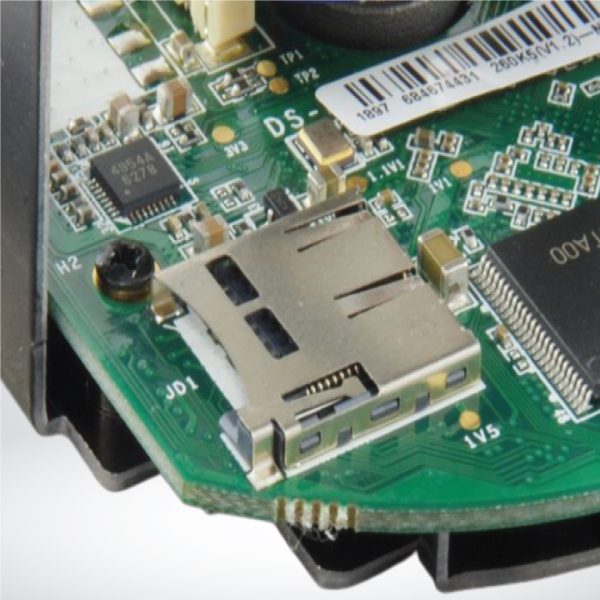

• Built-in Micro SD/SDHC/SDXC card slot for local storage

• Built-in infrared LEDs for night viewing up to 30m

• 4-Megapixel high-definition resolution

• Video compression: H.264, H.265, MJPEG

• Weatherproof IP66-rated housing

Compare Compare

The LevelOne FCS-3403 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 4-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3402 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.

Approval and compliance CE,FCC,TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection,IP67,IK10,RoHS
Supported browsers IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
Operating temperature -30°C ~ 60°C
Storage temperature 0°C ~ 95°C
Angle of View (°) Horizontal field of view: 86 Vertical field of view: 46ᄀ Diagonal field of view: 102ᄀ
Audio format G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Image sensor 1/2.7″ Progressive Scan CMOS
Indicators Power
IR cut filter Yes
IR range Up to 30 meter
Lens Lens Mount:M12 4 mm @F2.0
Resolution Main Stream:
50Hz: 25fps (1920 * 1080, 1280 * 960, 1280 * 720)
60Hz: 30fps (1920 * 1080, 1280 * 960, 1280 * 720)
Sub Stream:
50Hz: 25fps (640 * 480, 640 * 360, 320 * 240)
60Hz: 30fps (640 * 480, 640 * 360, 320 * 240)
Third Stream:
50Hz: 25fps (1920 * 1080, 1280 * 720, 640 * 360, 352 * 288)
60Hz: 30fps (1920 * 1080, 1280 * 720, 640 * 360, 352 * 240)
Shutter time 1/3 s to 1/100,000 s
Storage capacity Built-in MicroSD/SDHC/SDXC slot, up to 128G
Video format Main stream: H.265/H.264 Sub stream: H.265/H.264 /MJPEG Third stream: H.265/H.264
Features One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Product weight (kg) 0,5
Color White
EAN 4015867207703
Model Number FCS-3403
Package contents FCS-3403
Screw Kit
Quick Installation Guide
Resource CD (User Manual, Utility, QIG)
Camera Type Dome
Resistance Weatherproof
Zoom Type Fixed
2-way Audio Yes
IR Leds for night vision Yes
PoE Supported Yes
Max. Resolution 4 Megapixels
IP Camera series GEMINI
Power consumption 12 VDC, 0.7 A, max. 8.5W, ? 5.5mm coaxial plug power
PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 10W
Dimensions (W x D x H) 111 x 111 x 82 mm
