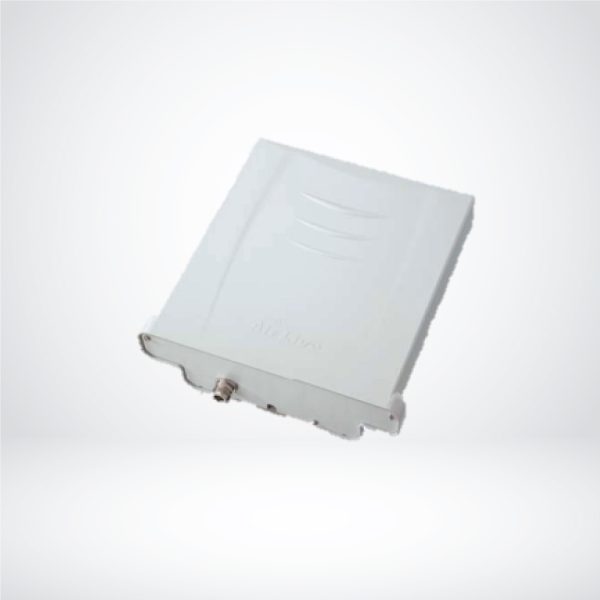

802.11a/b/g Wireless Outdoor CPE without Antenna-2.4 / 5GHz – WHA-5500CPE-NT

WHA-5500CPE is an all-in-one outdoor device designed to let users build outdoor wireless connections quickly and easily. Running at the quiet 5GHz spectrum, it delivers high performance at distance of more than 5 kilometers.

Compare

Broadband Radio Access Network(BRAN); 5GHz high performance RLAN; Harmonized EN Covering essential requirements of Article 3.2 of the R&TTE Directive. equipment.

Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission equipment operating in the 2.4GHz ISM band And using spread spectrum modulation techniques; Part 1:technical Characteristics and test conditions Part2:Harmonized EN covering Essential requirements under article 3.2 of the R&TTE Directive

Electromagnetic compatibility and Radio spectrum Matters (ERM);

Services; Part 17:Specific conditions for wideband data and HIPERLAN equipment.

Generic standard to demonstrate the compliance of low power Electronic and electrical apparatus with the basic restrictions related to human exposure to electromagnetic field (10MHz – 300GHz) -General public Safety for information technology equipment including electrical business equipment.

Standard

– 802.11a /11g/ support

–   RoHS compliant

–   Supports One 10/100 Mbps LAN

–  Auto MDI/MDI-X support

–   4MB Flash, 32MB SDRAM

–  IEEE 802.3af (PoE) compliance up to 100 meters of CAT 5 cable length

–   802.11h compatible



Antenna Connector

–   N-Type Female Connector

Frequency Band

– ETSI: 802.11a: 5.470 to 5.725 GHz

– ETSI: 802.11b/g: 2.412 to 2.472 GHz

Power Supply

–  External Power Adapter : input 100~240Vac/50~60Hz output 5.5V/2.5A

–  Power over Ethernet (802.3af), up to 100 meters of CAT 5 cable

–   POE Adapter, DC Injector provided

–   POE port built-in on the PCB

Transmission Rates

– IEEE802.11a: 6/9/12/18/24/36/48/54Mbps

– IEEE802.11g: 6/9/12/18/24/36/48/54Mbps

– IEEE802.11b: 1/2/5.5/11Mbps

Modulation Technology

–  802.11a Orthogonal Frequency Division Multiplexing (OFDM)

–  802.11g Orthogonal Frequency Division Multiplexing (OFDM)

–   802.11b Direct Sequence Spread Spectrum (DSSS)

Output Power

– 802.11a

–  54 Mbps @ 17dBm

–  48 Mbps @ 18dBm

–  36 Mbps @ 19dBm

– 6, 9, 12, 18, 24 Mbps @ 20dBm

– 802.11g

–  54 Mbps @ 17dBm

–  48 Mbps @ 18dBm

–  36 Mbps @ 20dBm

– 6, 9, 12, 18, 24 Mbps @ 20dBm

– 802.11b

– 1, 2, 5.5, 11 Mbps @ 20dBm

Software



–  Support Client Mode, AP Mode, WDS Bridge Mode, Repeater Mode, WISP Mode

–   Multiple SSID

– QoS (802.11e WMM)

–   Wi-Fi, WPA compatible interoperability

–   WPA with PSK/TKIP/AES support ,WPA2 support

–   Privacy Separator support

–   SNMP v1/v2 support

–   Support adjustable output power

–   Comply with DFS II

–   152-bit WEP support (Atheros Proprietary)

–  ACK Timeout Adjustment

–   WPA over WDS support

–  Bootloader Protection and Emergency Firmware Upload Code



Dimension

–  Polarization : Linear, vertical

Software/Firmware

–   Site Survey

–   DHCP Client

–  Wireless access control by MAC address (deny or accept)

–   WPA Support (WPA personal and enterprise)

–  Web-based configuration via popular browser (MS IE, Netscape)

–   Firmware upgrade and configuration backup via Web



Product Weight (g)

– 1105 g

Product Size ( L x W x H (mm) )

– 225 x 122 x 225 mm
