AC750 Dual Band High Power & Wave-2 PoE Ceiling Wireless AP/Router (8 SSID) – WAP-8121

• Share your wireless network up to 750Mbps

• Compatible with IEEE 802.11a/b/g/n/ac wireless standards

• Provides up to 8 SSIDs to separate network traffic and enhance security

• Multi-operation modes to suit different wireless applications

• Auto Channel Selection for low interference band

• Dual power support: 12V DC/PoE (IEEE 802.3at)

Compare Compare

LevelOne’s WAP-8121 is a managed, dual-band wireless access point, capable of a combined speed of up to 750 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAP-8121 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.

Approval and compliance CE, RoHS
Operating humidity 10% RH ~ 90% RH
Operating temperature -20°C ~ 50°C
Storage humidity 5% RH ~ 90% RH
Storage temperature -40°C ~ 70°C
Antenna 1 x 5GHz 5dBi internal Omni antennas 2 x 2.4GHz 5dBi internal Omni antennas
EIRP (dBm) <20 dBm
Encryption WEP 64/128-bit Web share key encryption WPA, WPA2 128-bit TKIP/AES encryption WPA, WPA2-PSK TKIP/AES encryption
Frequency band 2.4 ~ 2.4835 GHz 5.15 ~ 5.35 GHz 5.46 ~ 5.72 GHz 5.725~ 5.825 GHz
Indicators Power
RAM size 128MB (DDR2)
Flash memory size 16MB

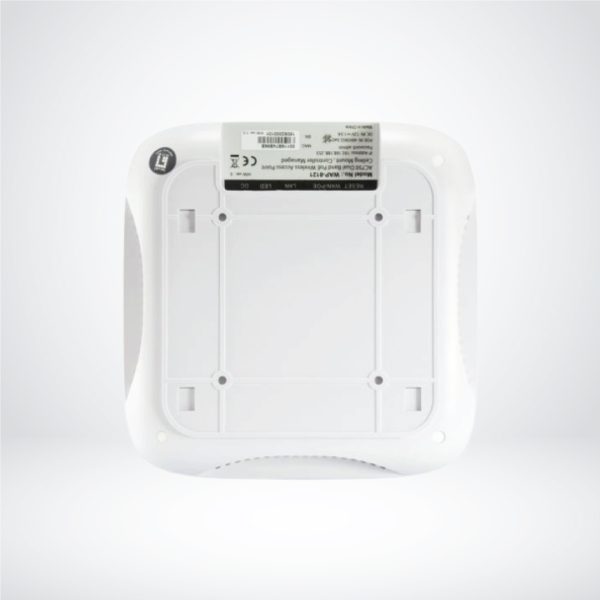

Mount Ceiling mount
Operating modes Gateway Mode, Repeater Mode, AP Mode, WISP Mode
Power supply Power adapter (ordered separately)
Standards IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.11e Wi-Fi Multimedia (WMM)
IEEE 802.3x Ethernet Flow Control
IEEE 802.11i Wi-Fi Protected Access (WPA2)
IEEE 802.11a,IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
IEEE802.3at Power over Ethernet is recommended
Wireless channels 2.4GHz: Ch.1 ~ 13 EU Ch.1 ~ 11 USA 5GHz: Ch.36 ~ 48 EU Ch.36 ~ 48 , 149 ~ 161 USA
Features Multi-SSID: 8 SSIDs (2.4GHz x 4 SSIDs + 5.8GHz x 4 SSIDs)
Product weight (kg) 0.326
Color White
EAN 4015867199190
Model Number WAP-8121
Package contents WAP-8121,
Screw Kit,
RJ45 Network Cable,
Quick Installation Guide,
Resource CD (User Manual, QIG)

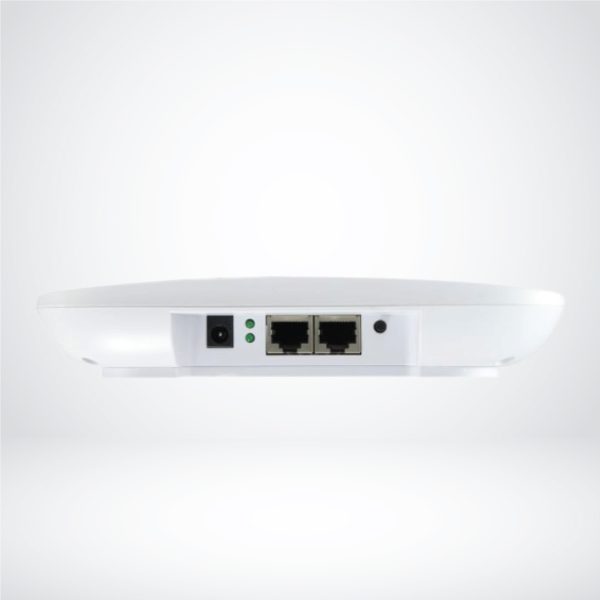

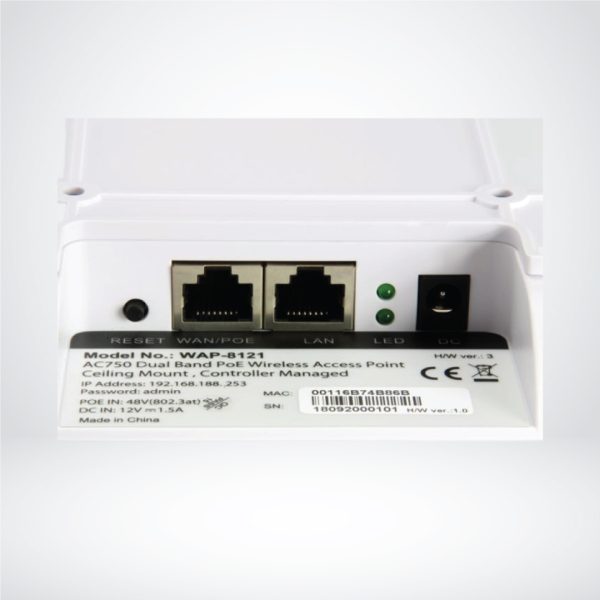

Fast Ethernet RJ45 2
802.3af/at PoE 1
Receiver sensitivity 2.4GHz:
802.11n (20MHZ): Range (-70) dBm
802.11n (40MHZ): Range (-68 ) dBm
802.11g: Range (-72) dBm
802.11b: Range (-95) dBm

802.11ac (80MHZ): Range (-62) dBm
802.11ac (40MHZ): Range (-65) dBm
802.11ac (20MHZ): Range (-68) dBm
802.11n (40MHZ): Range (-68 ) dBm
802.11n (20MHZ): Range (-70) dBm
802.11a: Range (-72) dBm

Frequency band 2.4/5GHz(Dual bands)
Max. Wi-Fi Data Rate 750Mbps
Wireless AP Type Ceiling
PoE Supported Yes
Power consumption 15W
