Cat.5E S/FTP Cable 305mtr/Box – SN-S5E51GR
Linear resistance: Max.≤95 Q/km
Mutual capacity(nom.): Max. 5.6nF/100M
Unbalance capacity max (p/p at 1 KHz): 1600 pF/km Characteristic impedance (1 to 100 MHz):100 + 15 Velocity OF Propagation (f>1MHz): 66 %of c
Industrial Standards:
TIA/EIA-568B.2-2001
UL Approval
Applicatioon:
ISDN
10BASE-T (IEEE 802.3)
100BASE-T (IEEE 802.3u)
ATM155Mbps
100VG-AnyLAN (IEEE 802.12)
Token Ring (IEEE 802.5)
TP-PMD (ANSI X3T9.5)
- Overview
- Specification

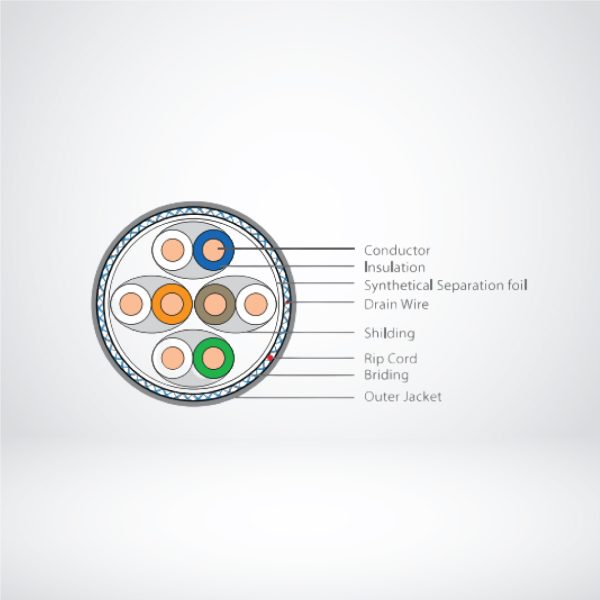

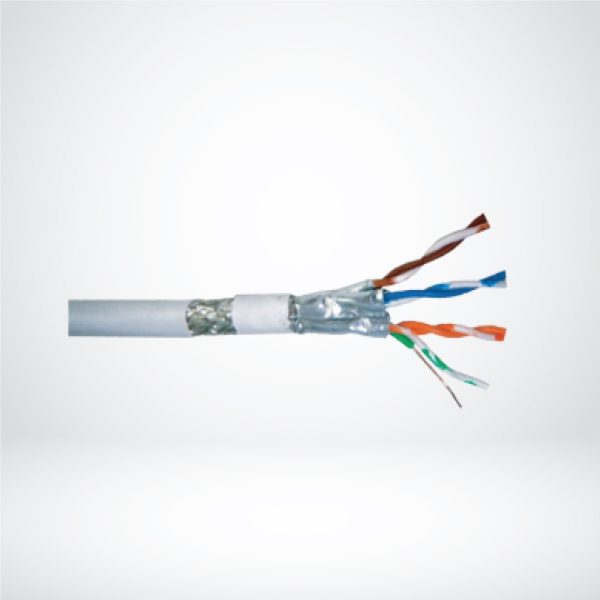

24 AWG SOLID-Bare Copper Conductor
Conductor Diameter 0.51mm +- 0.008mm
Solid PE Insulation
4 Pair
PVC/LSZH Outer Jacket
Synthetical Separation foil:polyester
110% coverage Shilding: Aluminum/polyester
16*6*012CCM Braiding
Outer Jacket Thickness 0.5mm +- 0.05mm
External Diameter 7.5mm +- 0.2mm
Rip Cord (Pre request)
0.4TC Drain wire
ROHS Compliant
Other Characteristics: MINIMUM BENDING RADIUS: 20 x Diameter
WEIGHT: 18.5 kg/km FIRE BEHAVIOUR: IEC 332-1 PACKING: 305m/box
Electrical Characteristic: | ||||||||||
Frequency
(MHz) |
Return loss (dB) | Attenuation (dB/100m) | NEXT (dB) | PSNEXT (dB) | ELFEXT (dB) | PSELFEXT (dB) | ||||
1 | 20.0 | 2.19 | 65.3 | 62.3 | 63.8 | 60.8 | ||||
4 | 23.0 | 4.12 | 56.3 | 53.3 | 51.8 | 48.8 | ||||
10 | 25.0 | 6.60 | 50.3 | 47.3 | 43.8 | 40.8 | ||||
16 | 25.0 | 8.45 | 47.2 | 44.2 | 39.7 | 36.7 | ||||
20 | 25.0 | 9.50 | 45.8 | 42.0 | 37.8 | 34.8 | ||||
25 | 24.0 | 10.60 | 44.3 | 41.3 | 35.8 | 32.8 | ||||
31.25 | 23.0 | 11.90 | 42.9 | 39.9 | 33.9 | 30.9 | ||||
62.5 | 21.0 | 17.20 | 38.4 | 35.4 | 27.9 | 24.9 | ||||
100 | 20.0 | 22.20 | 35.3 | 32.3 | 23.8 | 20.8 | ||||
