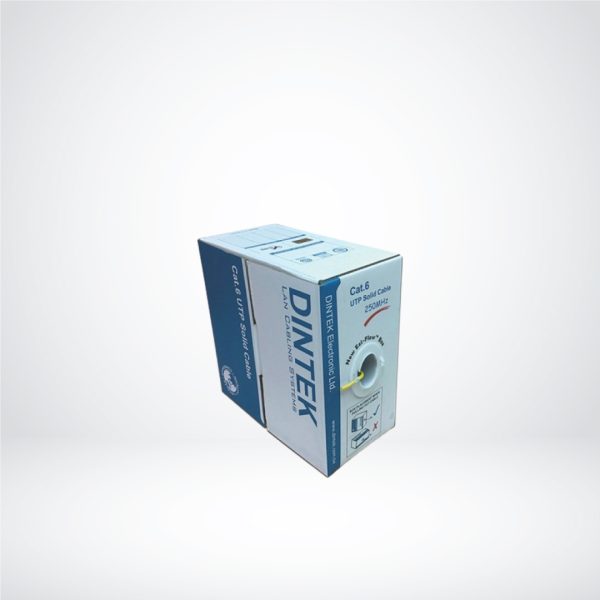

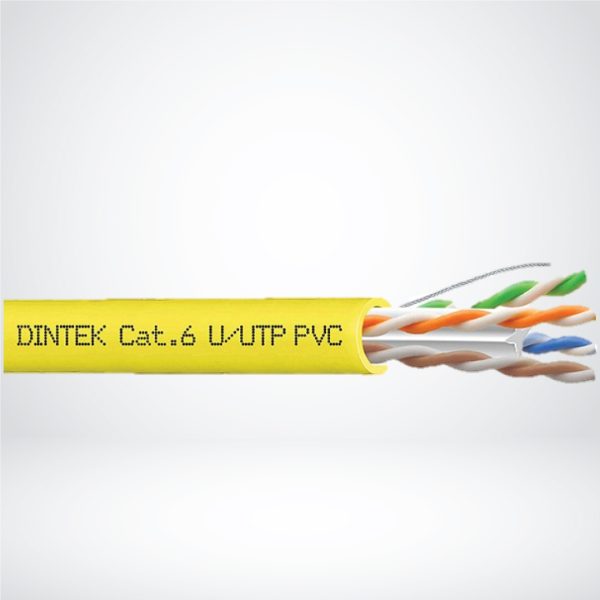

Cat.6 UTP cable solid wire 23AWG Exi-Flow Exit( 1 Box:305m), Yellow – 1101-04010CH
• Conductor sizes for Cat.6 are set at 23AWG
• By keeping the gauge size of the conductor larger, there is less heat generation caused and less drop of voltage over distance
• Capable of handling the latest version of power over Ethernet
• Cable has been tested over 500Mhz and has shown performance testing results allowing 10Gbit Ethernet transmission up to a length of 70mtrs
• 100Mbps, 1Gigabit & 10Gigabit Ethernet
• 155/622Mbps 1.2/2.4 Gbps ATM 550MHz
• Broadband Video | Voice; T1; ISDN
- Overview
- Specification
The DINTEK PowerMAX500TM Cat.6 solution is guaranteed to exceed ClassE channel specifications as set down in International standards. Our PowerMAX500TM solution comprises Cat.6 component compliant patch panels, keystones and patch cords. When combined with DINTEK’s Cat.6 UTP cable, an end-to-end channel exists that maximizes data throughput and provides headroom for all future technologies operating beyond one Gigabit.
| Construction | |
| Conductor | |
| Material | Bare Copper |
| Wire Size | 23AWG |
| Insulation | |
| Material | HDPE |
| Thickness | Nominal: 0.226 mm |
| Diameter | Nominal: 1.011 mm |
| Colors | Blue/White-Blue | Orange/White-Orange | Green/White-Green | Brown/White-Brown |
| Unaged Elongation(%) | Min. 300% |
| Jacket | |
| Material | Flame Retardant PVC |
| Thickness | 0.5 ± 0.02 mm |
| Diameter | 6.1 ± 0.2 mm |
| Color | Yellow |
| Fire Rated Class | CM |
| Physical Ranges | |
| Insulation | |
| Min. Tension Strength | Before Aging : Min. 1.683 Kgf/mm² | After Aging : 75% before aging (100℃ x 48hrs) |
| Min Elongation (%) | Before Aging : 300% | After Aging : 75% before aging (100℃ x 48hrs) |
| Jacket | |
| Min. Tension Strength | Before Aging : Min. 1.407 Kgf/mm² | After Aging : 85% before aging (100100 ℃ x 168hrs) |
| Min Elongation (%) | Before Aging : Min. 100% | After Aging : 50 % before aging (100℃ x 168hrs) |
| Cold Bend Test | -20 ± 2℃ x 4hrs no. crack |
| Dielectric Strength | 2500 V dc / 2 seconds |
| Min. Bending Radius | 50 mm |
| Max. Pulling Tension | 25 Ibs |
| Installation Temperature | 0℃ to +50℃ |
| Operating Temperature | -30℃ to +60℃ |
| Electrical | |
| Conductor Resistance | Max. 7.32Ω/100m at 20℃ |
| DC Resistance Unbalance | Max. 2% |
| Pair-to-Ground Capacitance Unbalance | 360 pF/100m |
| Dielectric Strength of Insulation | 2500 V dc/ 2 seconds |
| Insulation Resistance Test | Min. 5000 M Ω·Km |
| Mutual Capacitance | Max. 5600 pF/100m |
| Impedance 1~100MHz | 100Ω ± 15% |
| Impedance 100~250MHz | 100 Ω ± 15% |
