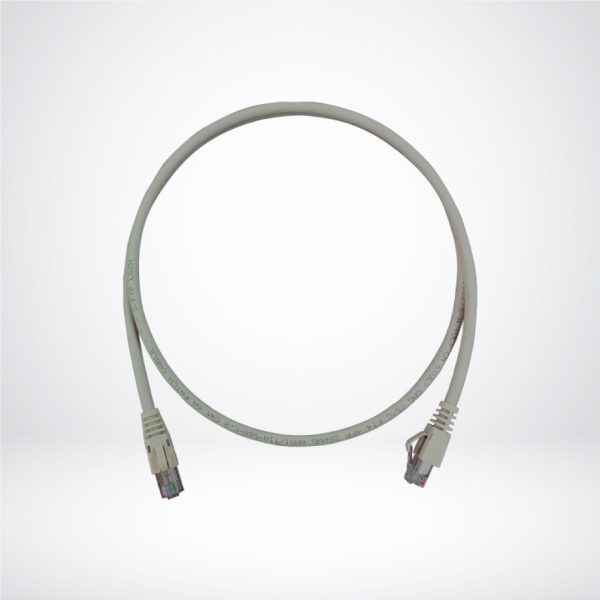

Cat.6A Shielded Patch Cord-Gray, 3M – 1201-06003

• Component level performance

• Molded boots prevent pin from bending and cables from kinking

• Stranded wire provides maximum flexibility

• Fully tested to meet ANSI/TIA-568.2-D Cat.6A requirements

• The mechanical characteristics and transmission performance meet 10GbaseT Ethernet, 16Mbps token Ring, 10Base-T, 100BaseT, 155Mbps, 622Mbps ATM, Gigabit-Ethernet and 1.2Gbps ATM

Compare Compare

DINTEK PowerMAX+TM Foil Wrapped UTP Patch Cords are key components of the PowerMAX+TM F/UTP end-to-end solution. They are specifically designed to support high speed data networks for 10-Gigabit Ethernet applications and are fully tested to meet ANSI/TIA-568.2-D Cat.6A channel requirements. The patch cables are made from high quality shielded four pair 26AWG stranded wire.

DINTEK PowerMAX+TM Patch Cords are pre-terminated with RJ45 shielded plugs and feature anti-snag strain relief boots. DINTEK recommends the entire range of PowerMAX+TM shielded products be used in an end-to-end system to maximize cabling performance.

Cable Construction
Material Stranded Anneal Copper Wire
Wire Size 26AWG
Material Polyolefin
Diameter 0.96±0.05mm
Colors Blue/White-Blue | Orange/White-Orange | Green/White-Green | Brown/White-Brown
Diameter of Dielectric Core P1&P3: 0.94±0.005mm | P2&P4: 0.92±0.005mm
Material PVC
Diameter 6.0 ±0.2mm
Colors Gray
Shielding Material Aluminum Mylar (Aluminum inward)
Drain Wire 26AWG Tinned Copper
RJ45 Plug
Plug Type Shielded RJ45 plug
Contact Material Copper alloy 50u” gold plated over nickel
Strength 20lbs. min
Durability 750 cycles min.
Wiring schemes T568B (or T568A on request)
Impedance 15Ω/100m at 20℃
Capacitance Unbalance Pair to Ground 330pf/100m Max
D.C.R (Max.) 14.8 ohm/100m at 20℃
DC Insulation Resistance 1500MΩ/100m min.
Resistance Unbalance 3% MAX./100m
