Cat7 S/FTP Solid LSZH Cable (1 roll:305m) – 1105-05001
DINTEK PowerMAX7TM Cat.7 cable is specifically designed to support current and future high speed network applications such as 10-Gigabit Ethernet.

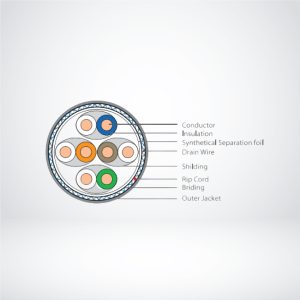

The cable is constructed of 4 screened pairs and a drain wire. DINTEK PowerMAX7TM Cat.7 S/FTP cable eliminates alien crosstalk, gives excellent signal isolation and provides superior electromagnetic interference protection.
- Overview
- Specification
Application
10GBASE-T Ethernet 100BASE-TX Fast Ethernet 1000BASE-T Gigabit Ethernet
1000BASE-TX Gigabit Ethernet 10BASE-TX Ethernet
ATM CB1G | 155/622 Mbps ATM
100 Mbps TP-PMD | 100VG-AnyLAN | Voice
Standards Conformance
Flame Retardancy is verified according to IEC 60332-1-2 ISO/IEC11801 Class F, 2nd edition
ANSI/TIA/EIA Cabling Standard 568-C.2
Independent Verified Certifications
3P Certified for Category 7 S/FTP installation Cable
Performance Statistics
|
| Construction | |
| Conductor | |
| Material | Solid Bare Ccopper |
| Wire Size | 23AWG |
| Insulation | |
| Material | Foam-Skin PE |
| Thickness | Nominal: 0.419 |
| Diameter | Nominal: 1.42mm |
| Colors | Blue/White-Blue | Orange/White-Orange | Green/White-Green | Brown/White-Brown |
| Unaged Elongation (%) | Min. 100% |
| Unaged Tensile Strength | Min. 0.816 Kgf/mm² |
| Individual Shielding | A layer of aluminum mylar tape |
| Jacket | |
| Material | LSZH |
| Thickness | Nominal : 0.5 mm |
| Diameter | 7.4±0.3mm |
| Color | Gray – (Assorted upon request) |
| Overall Shielding | Tinned copper wire braiding, normal with min. 40% coverage |
| Physical Ranges | |
| Insulation | |
| Min. Tension Strength | Before Aging : Min 0.816 Kgf/mm² |
| Min Elongation (%) | Before Aging : Min 100% |
| Jacket | |
| Min. Tension Strength | Before Aging : Min. 0.917 Kgf/mm² | After Aging : Min. tensile strength retention: 70% |
| Min Elongation (%) | Before Aging : Min. 125%|After Aging : Min. elongation retention: 75% |
| Dialectric Strength | 1500 V dc/2 seconds |
| Min. Bending Radius | 32mm |
| Max. Pulling Tension | 25Ib/Mtr (8-10kg) |
| Installation Temperature | 0℃ to + 50℃ |
| Operating Temperature | -20℃ to + 50℃ |
| Electrical | |
| Conductor Resistance | Max. 9.38 Ω/100m at 20℃ |
| DC Resistance | Max 2% at 20℃ |
| Pair-to-Ground Capacitance Unbalance | Max 160 pF/100m |
| Dielectric Strength of Insulation | 2500 Vdc/3 seconds |
| Insulation Resistance Test | Min. 5000M Ω/m |
| Mutual Capacitance | Max. 5600 pF/100m |
| Impedance 100-250MHz | 100 Ω ±15% |
| Impedance 300~600MHz | 100 Ω ± 25% |
| Spark Test | 2000 ±250 V ac |
