Dual-Band 802.11ac In-Wall Managed Access Point – ECW100
Edgecore ECW100 is a concurrent dual-band 802.11ac in-wall access point designed specifically for enhancing your traditional Ethernet/telephone outlets with Wi-Fi capabilities.
- Overview
- Specification

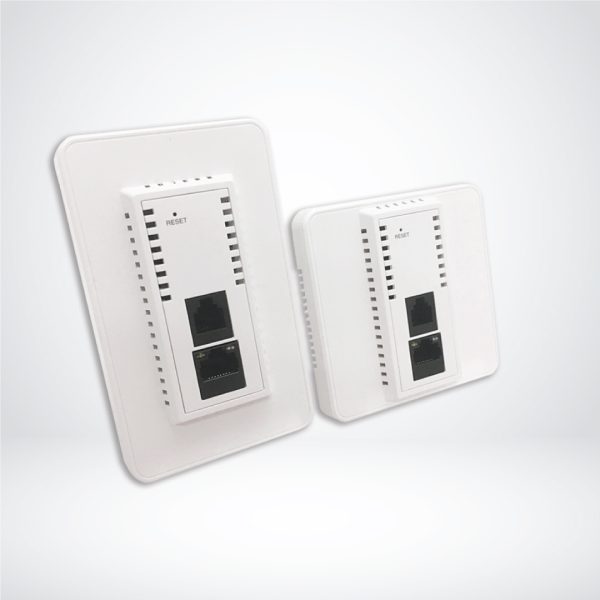

The Edgecore ECW100 is a concurrent dual-band 802.11ac in-wall access point designed specifically for enhancing your traditional Ethernet/telephone outlets with Wi-Fi capabilities. It provides a Gigabit LAN port for your network devices and a pass-through telephone port for supporting telephone, modems and ADSL connections. Featuring two 2×2 MIMO radios, the ECW100 can simultaneously support up to 300 and 867 Mbps data rates in the 2.4 and 5 GHz bands respectively.
When ECW100 is deployed and centrally managed by Edgecore EWS Controller, additional value-added applications such as bandwidth control, user authentication, and captive portals can be used to provide an ideal solution for all types of businesses.
• RADIO
○ 802.11 a/b/g/n/ac
○ Concurrent Dual-band 2.4 / 5 GHz
○ Radio Chains: 2 x 2 : 2
○ Output Power: 2.4 GHz: Up to 10 dBm, 5 GHz: Up to 10 dBm (Maximum power is limited by local regulatory requirements)
○ Frequency Band: 2.412 – 2.472 GHz, 5.180 – 5.825 GHz
○ Channelization: 20 MHz, 40 MHz, 80 MHz
○ Up to 8 ESSIDs per radio (16 total)
• QUALITY OF SERVICE
○ Wireless QoS (802.11e / WMM)
○ DSCP (802.1p)
○ Multicast to Unicast Conversion
○Optimal Client Filtering
• PHYSICAL DIMENSIONS
○ US: 4.0 cm x 7.0 cm x 11.5 cm (L x W x H)
○ EU: 4.0 cm x 8.5 cm x 8.5 cm (L x W x H)
○ Weight: 125 g (0.275 lbs)
○ Mounting: In-Wall (Mounting plate included)
• INTERFACES
○ Uplink: 1 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45 with 802.3af PoE
○ LAN: 1 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45
○ Bypass: 1 x RJ-11 (front) and 1x RJ-11 (back)
• ANTENNA
○ Type: 2 x Built-in (2 x 2.4 GHz, 2 x 5 GHz)
○ Gain: 2 dBi (2.4 GHz), 3.5 dBi (5 GHz)
• ENVIRONMENTAL CONDITIONS
○ Operating Temperature: 0°C (32°F) to 40°C (104°F)
○ Operating Humidity: 0% to 90% non-condensing
• PERFORMANCE
○ Up to 300 Mbps (2.4 GHz)
○ Up to 867 Mbps (5 GHz)
○ Up to 200 Concurrent Users (100 on 2.4 GHz, 100 on 5 GHz)
• MOBILITY / ROAMING
○ 802.1X Preauthentication
○ Layer 2 / Layer 3 Fast Roaming
• SECURITY
○ Wireless Security: WEP, WPA / WPA2 Mixed (TKIP/AES Mixed), WPA2-Personal (AES), WPA2-Enterprise (AES)
○ VLAN Tagging (802.1Q)
○ Station Isolation
○ DHCP Snooping
○ Layer 2 Firewall
• MANAGEMENT
○ Deployment: Standalone, Tunneled management by Edgecore EWS Gateway-Controller, IPv4 compatible, LLDP
○ Configuration: Web User Interface (HTTP / HTTPS), SNMP v1, v2c, v3
• POWER
○ PoE: 802.3af compliant (PoE injector optional)
○ Power Consumption: 8W max.
• LED INDICATORS
○ Power
○ 1 x LAN Status (100 Mbps)
○ 1 x LAN Status (1 Gbps)
• Enterprise-grade AP Functionality
○ Up to 8 ESSIDs per Radio
○ Configurable Connectivity Thresholds
○ Dynamic Channel Selection
○ Seamless/Fast Roaming
○ Multicast to Unicast Conversion
○ 11e/WMM
○ 11u
○ 1p/DSCP
• Advanced Wi-Fi Security
○ WPA2-Enterprise with 802.1X Authentication
○ 1Q VLAN Tagging
○ Layer 2 Firewall
○ Station Isolation
○ MAC ACL
○ DHCP Snooping
○ WPA/WPA2 Security with AES Encryption
○ Detailed User Connectivity Statistics
○ Configurable Trusted Wireless Interfaces
○ Secure AP Mounting Mechanisms
