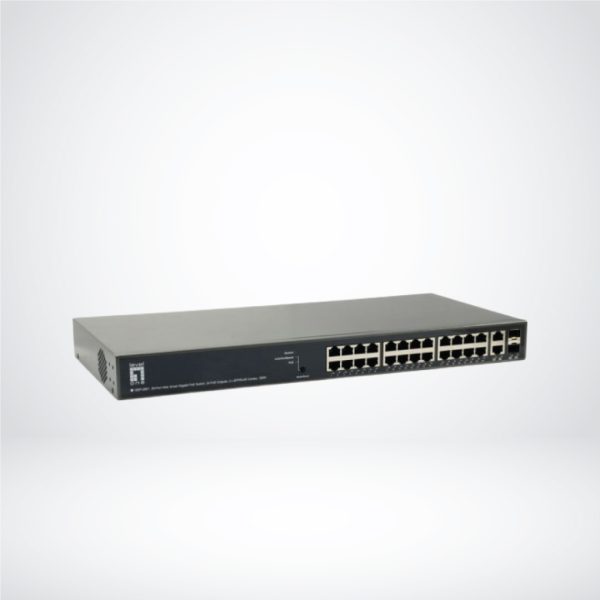

26-Port (24 PoE Copper & 2 SFP/2 RJ-45) POE Lite L2 Managed Turning Switch – GEP-2651
• 24 Gigabit PoE ports and 2 Gigabit RJ45/SFP combo ports
• IEEE 802.3af/at PoE compliant to simplify deployment and installation
• Total PoE power budget: 185W, up to 30W per port
• QoS control for traffic prioritization and bandwidth management
• DHCP Client/Server
• Supports IPv4/IPv6 network operation
• Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
• IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring
• IP Multicast Filtering through IGMP Snooping V1 / V2 / V3
• Supports port-based VLAN, IEEE 802.1Q VLAN Tagging
• The built-in Device Management System (DMS) provides management, diagnostics and monitoring to connected network components and devices
- Overview
- Specification
GEP-2651 Web Smart Gigabit PoE Switch is a next-generation Ethernet Switch offering powerful L2 features, Layer 3 Static Route, better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections. GEP-2651 delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 185W) ports and 2 Combo GbE RJ45/SFP ports. GEP-2651 provides high HW performance and environment flexibility for SMBs and Enterprises. GEP-2651 is ideal to deliver management simplicity, optimum user experience, and lower total cost of ownership. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
| Approval and compliance | ● CE ● FCC Part 15 Class A ● ROHS ● UL 60950-1, 2nd Edition, 2014-10-14 (Information Technology Equipment – Safety – Part 1: General Requirements) ● CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-10 (Information Technology Equipment – Safety – Part 1: General Requirements) |
|---|---|
| Operating humidity | 10% RH ~ 90% RH |
| Operating temperature | 0°C ~ 45°C |
| Storage humidity | 10% RH ~ 90% RH |
| Storage temperature | -20°C ~ 70°C |
| Embedded system | ECOS |
| Backplane (Gbps) | 52Gbps |
| Indicators | System, Link/Act/Speed, PoE |
| Jumbo frame (KB) | 9 |
| MAC address table | 8 K |
| RAM size | 512 MB |
| Flash memory size | 128 MB |
| Mount | 19″ rack mount, Desk mount |
| Pin assignment and polarity | 1/2 (+), 3/6 (-) |
| Power supply | 100-240 VAC, 50-60 Hz |
| Standards | ● IEEE 802.3u 100-BASE-TX, Fast Ethernet ● IEEE 802.3ab 1000BASE-T, Gigabit Ethernet ● IEEE 802.3z 1000BASE-X,Gigabit Ethernet ● IEEE 802.1p Quality of Service (QoS) ● IEEE 802.1X Port-based Network Access Control (PNAC) ● IEEE 802.1Q Virtual LANs (VLANs) ● IEEE 802.1D MAC Bridges ● IEEE 802.1d Standard Spanning Tree Protocol ● IEEE 802.1s Multiple Spanning Tree (MSTP) ● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) ● IEEE 802.3ad Link Aggregation Control Protocol (LACP) ● IEEE 802.3af Power over Ethernet (PoE) ● IEEE 802.3at Power over Ethernet Plus (PoE+) ● IEEE 802.3az Energy-Efficient Ethernet |
| Features | ● Device Management System (DMS) ● 802.1Q tag-based VLAN – up to 256 VLANs and 4096 VLAN IDs ● Port-based VLAN ● MAC-based VLAN ● Q-iN-Q (double tag) VLAN ● DHCP Client ● Native IPv6 and IPv4/IPv6 Dual Stack ● IPv6 host mode; ● IPv6 stateless address auto-configuration ● Duplicate Address Detection (DAD) ● ICMP v6 ● IGMP v1/v2/v3 snooping ● IGMP Queried ● IGMP Proxy ● IPv6 QoS Prioritize IPv6 packets in hardware ● Port Mirroring ● Many-to-One TX/RX ● QoS Class of service (CoS) ● DiffServ (DSCP) ● IEEE802.3x Flow Control ● DHCP Server |
| Product weight (kg) | 3,1 |
| Color | Grey |
| EAN | 4015867198957 |
| Model Number | GEP-2651 |
| Package contents | ● GEP-2651 ● Power Cord ● 19″ Rack Mount Kit ● Quick Installation Guide ● Resource CD (User Manual, QIG) |
| Gigabit RJ45/SFP combo | 2 |
| Gigabit RJ45 | 24 |
| Gigabit SFP | 2 |
| 802.3af/at PoE | 24 |
| Switching capacity | 52 Gbps |
| Grade | Commercial |
| Data Rate | Gigabit Ethernet |
| PoE Supported | Yes |
| Manageable | Yes |
| Fanless | No |
| Concurrent ports | 26.00 Ports |
| Series | TURING series |
| PoE Power Budget | 185.00 Watts |
