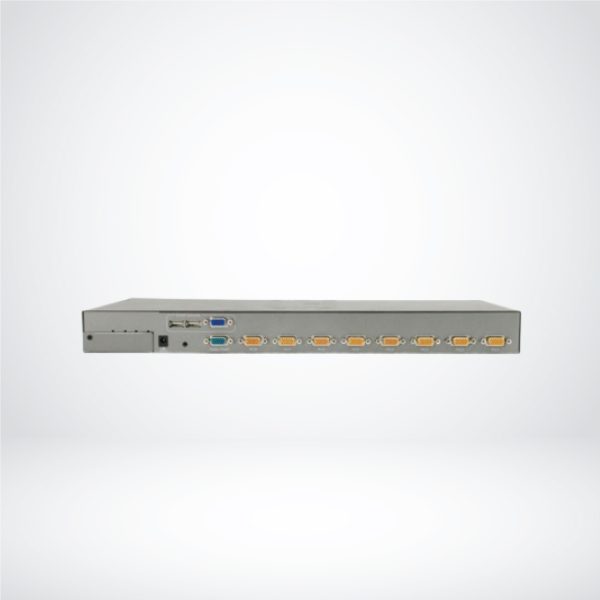

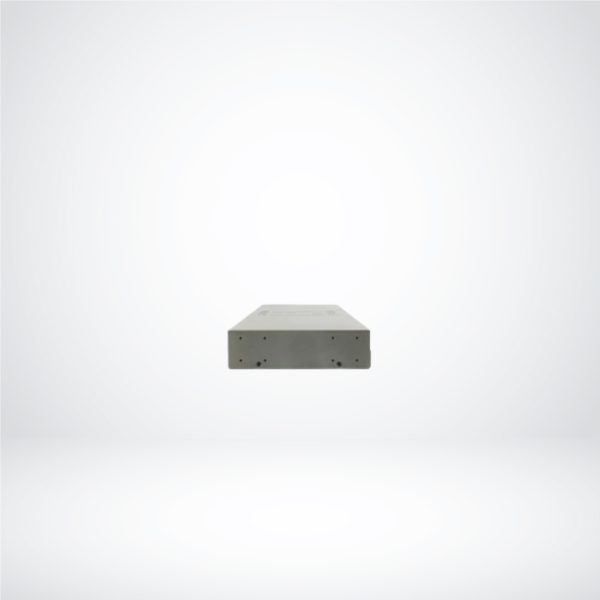

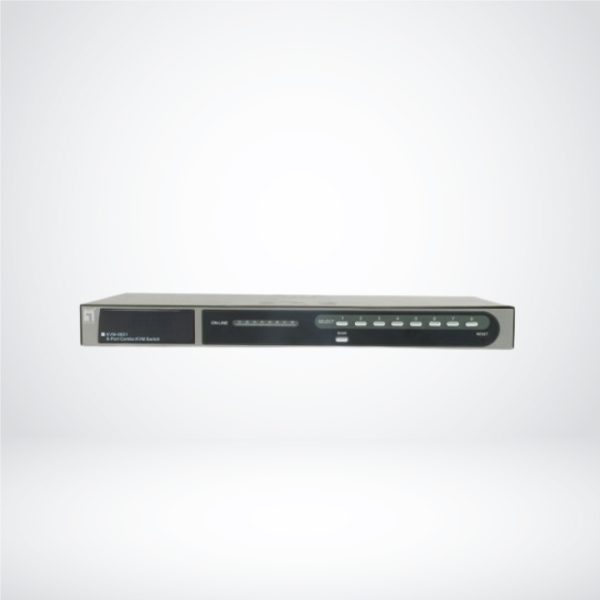

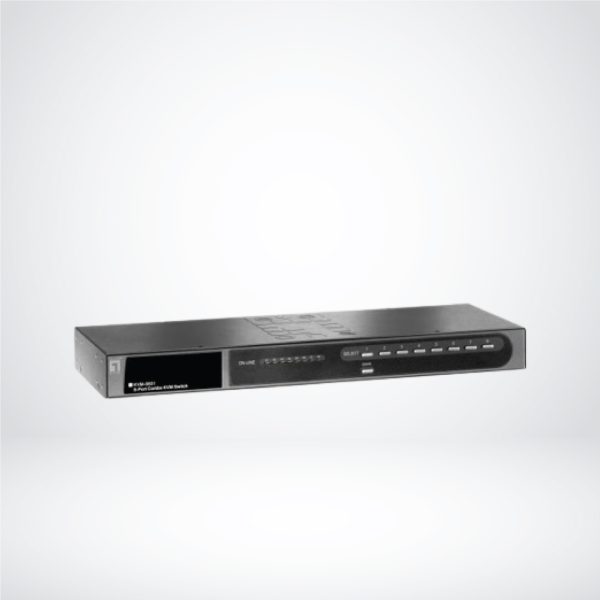

8-Port Combo KVM Switch w/OSD for USB & PS2 with Expantion Slot (Without Cables) – KVM-0831

• Control and manage 8 computers or up to 120 computers via daisy chain function from a single location

• Supports video resolutions up to 1920 x 1440

• Built-in IP module slot for KVM-over-IP capability

• Provides auto-scanning features

Compare Compare

The LevelOne KVM-0831 8-port combo KVM switch enables users to control and manage a server farm or computers connected to the KVM switch with either the local console or remote console port.Local ConsoleThe KVM-0831 Combo KVM Switch is easy to connect to a PS/2 or USB enabled keyboard and mouse with a VGA monitor through the local console port. This enables a user to control systems connected to the KVM switch directly.Remote ConsoleIn order to make use of the remote control feature, the KVM-0831 provides users with a greater variety of connectivity options through its expansion slot for optional modules.LevelOne has available an optional Cat.5 Console Module for this purpose. The ACC-1000 Cat.5 Console Module allows for the transmission of a Cat.5 signal to from the controlling unit to units or computers connected to via Cat.5 cabling to the KVM-0831. The ACC-1000 Cat.5 Module converts the Cat.5 signal into a computer signal to give users the ability to control servers and PCs from aremote location up to 300 meters away.Large System ManagementBy making use of a Daisy chain, up to 120 computers can be connected to the KVM switch by cascading 8 KVM-0830/0831/0841/1630/1631/1641 together. This gives network administrator the ability to control larger groups of servers or systems from one console without the need to switching between different console stations.The friendly user interface makes management of the KVM switch and systems connected to it, easy manageable. It also has security measures in place to protect systems from unauthorized access.

Operating humidity 0% RH ~ 95% RH
Operating temperature 0°C ~ 50°C
Indicators 8 LEDs
Resolution 1920 x 1440
Features Cascade Control PC numbers: 120
Applicable to computers support PS/2 or USB keyboard and mouse
Hot plug and Play
Hotkey Control
Scan interval: 5-99 seconds
19″ industry-standard, 1U
Product weight (kg) 2
Color Black
EAN 4015867138076
Model Number KVM-0831
Package contents KVM-0831
Power Adapter
19″ Rack Mount Kit
Rubber Feet
User Manual
Display Type VGA
Dimensions (W x D x H) 160 x 45 x 45 mm
