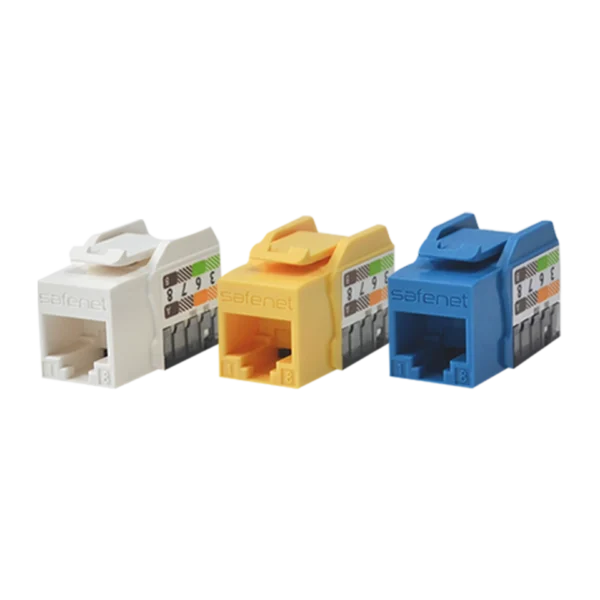

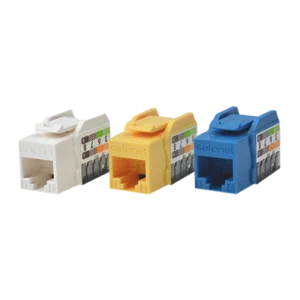

Cat6. Keystone E-Jack
- Cable direction to be adjusted (90° & 180°) after terminating the keystone jack.
- Flexible choice of cable feeding directions for narrow installation space.
- Unique structure provides an efficient and effective method of reducing alien cross talk from neighboring connectors.
- Compatible with ALL-in-One Keystone Jack Termination Tool.
- Description
- Specification
- Download
Description
Additional Information
- Color : Blue, White, Yellow
Feature
- Cable direction to be adjusted (90° & 180°) after terminating the keystone jack.
- Flexible choice of cable feeding directions for narrow installation space.
- Unique structure provides an efficient and effective method of reducing alien cross talk from neighboring connectors.
- Compatible with ALL-in-One Keystone Jack Termination Tool.
Material
- Jack Housing: ABS, UL94V-0.
- Jack Contacts: Phosphor Bronze C5210-EH, t=0.3mm plating 120? tin over 60?” nickel, plating 50 gold over contact area.
- PCB: FR4 & IDC Housing: PC, UL94V-0.
- IDC Terminals: Phosphor bronze C5191R-H, t=0.4mm plating 200?” matte tin over 100?” soft nickel undercoat.
- Cap: PC, UL94V-0, transparent black.
Environment
- Operating Temperature Range: -10°C to 60°C.
- Storage Temperature Range: -40°C to 68°C.
- Humidity: 10%~90%RH.
Physical Characteristics
- Insertion Life: 750 mating cycles with FCC compliant 8P plug.
- Contact Force: 100 grams with FCC compliant 8P plug.
- Plug Retention Force: 11 lbf min.
- Durability: 200 termination cycles.
- Contact Compatibility: accommodates 22 to 24 AWG solid.
Electrical
- Insulation Resistance: 500 M? min.
- Dielectric Withstanding Voltage: 1000 V AC.
- DC Resistance (input to output): 200 m? max.
- Contact Resistance: 20 m? max.
- DC Current Rating: 1.5 Amps.
Complied Standards
- Lead-free & RoHS Compliant.
