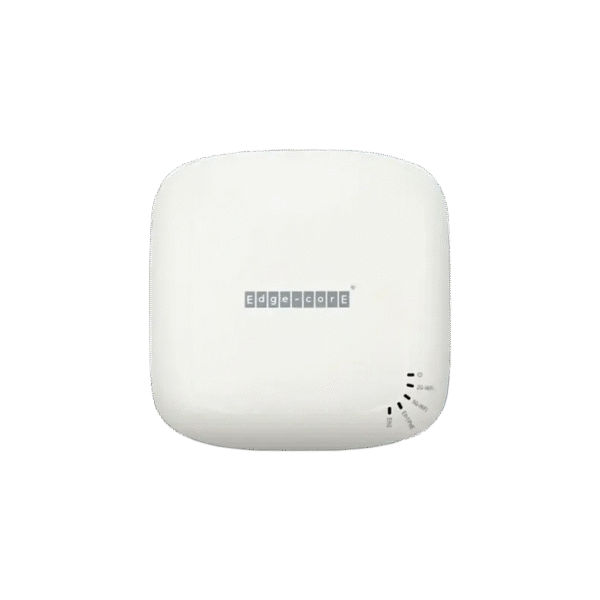

Edgecore ECH502 Wireless Hotspot Gateway Access Point

Key Features

• All-in-one: Built-in Wi-Fi and user-access control
• Integrated guest Wi-Fi platform supporting Facebook, Google+, Line and OpenID
• Tiered Wi-Fi service with usage quotas by bandwidth, volume, and duration
• Detailed user browsing histories and network statistics
• 802.11ac wave 2, 2 x 2: 2 MU-MIMO supporting a total data rate of 1.2 Gbps across both radios
• Up to 4 Service Zones, each with completely customizable captive portals and network configurations
• Built-in gatew

Category: Brand:

Description

The Edgecore ECH502 is an all-in-one wireless hotspot gateway solution that caters primarily to SMBs such as coffee shops or
restaurants. As an access point with built-in gateway functionality, the ECH502 is ideal for businesses that wish to have an
enterprise-grade Wi-Fi network for their customers, without the associated deployment costs and complexities. Featuring
concurrent dual-band 802.11ac wave 2 connectivity, 2×2:2 MU-MIMO with a total data rate of 1.2 Gbps, and many wireless
optimization features, the ECH502 is able to provide a wire-like performance. Additionally, the ECH502 offers a comprehensive set
of user authentication, policy enforcement, and network traffic monitoring functionality, allowing businesses to gain complete
visibility and control over their Wi-Fi network.
The integrated guest Wi-Fi in the ECH502 supports a wide-array of methods for guests to authenticate and obtain Wi-Fi access.
Guests can register by e-mail, SMS, or popular social media platforms such as Facebook, for additional access. Alternatively,
businesses can choose to integrate an external RADIUS server to easily centralize the user credentials in an existing network
environment.
With the ECH502, small business owners can move beyond just providing free Wi-Fi to their customers. Customizable captive
portals and social media login are now valuable sources for obtaining direct customer information, which in turn allows for better
understanding of customers and more effective marketing campaigns. Manageable Wi-Fi is increasingly becoming a necessity for
SMBs that wish to offer a secure and reliable Wi-Fi environment, and the ECH502 is the ideal product to meet these needs.

Specification

Main Feature
Antenna 1x USB 2.0, 2x Rj45
Button Restart / Reset
Temperature Operating Temperature: 0°C (32°F) to 50°C (122°F)
Dimensions 14.6 cm (L) x 14.6 cm (W) x3.5 cm (H)
Weight 0.55k g (1.21 lbs)
Network
Wireless Rate Up to 866.6 Mbps
Wireless frequency 2.4 GHz
5 GHz
Wireless standards 802.11 a/b/g/n/ac
Concurrent dual-band 2.4 & 5 GHz

da
