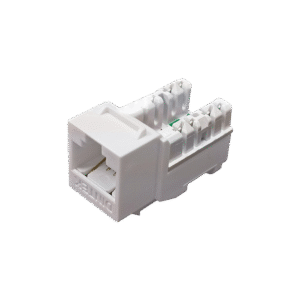

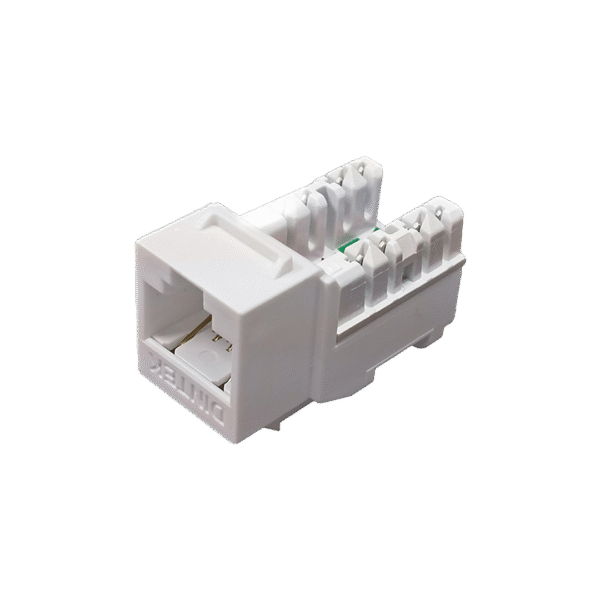

PowerMAX Cat.6 E-Type Horizontal ezi-JACK
Features
- Meet ANSI/TIA-568-C.2 Cat.6 15M short link requirements
- Accepts 22~24AWG, stranded or solid wire
- IDC connector with large space of each pair to improve crosstalk
- Modular jack meet FCC part 68
- Wiring: T568A/B
- Description
- Specification
- Download
Description
| PowerMAX Cat.6 E-Type Horizontal ezi-JACK | English |
If it’s speed that you’re after, then look no further than the DINTEK PowerMAXTM Cat.6 Modular Jacks. DINTEK Cat.6 Jacks provide performance that exceeds Cat.6 connecting hardware performance specifications. They also ensure backwards compatibility with components and systems of lower performing categories.
DINTEK installers and end users benefit from the ease of install and use, and with their compact design, are good for high density situations. For example, up to six modules can be utilized in a single face plate. Combined with other DINTEK PowerMAXTM products, they are the perfect solution to your voice and data communications needs.
Features
- Meet ANSI/TIA-568-C.2 Cat.6 15M short link requirements
- Accepts 22~24AWG, stranded or solid wire
- IDC connector with large space of each pair to improve crosstalk
- Modular jack meet FCC part 68
- Wiring: T568A/B
Standards Conformance
- UL verified
- ISO/IEC11801 2nd edition
- ANSI/TIA Standard 568-2.D
- CENELEC EN 50173
Independent Verified Certifications
- ETL Verified Certificate Of Conformance
Applications
- Voice; T1; ISDN
- 10GBASE-T
- 16Mbps Token Ring (IEEE802.5)
- 100VG-AnyLAN (IEEE802.12)
- 100BASE-T Ethernet (IEEE802.3)
- 155/622Mbps 1.2/2.4 Gbps ATM
- 1000Mbps Gigabit Ethernet
- 550MHz Broadband Video
| Technical Specifications | |
|---|---|
| Construction | |
| Body | |
| Connector Housing | High-impact, Flame Retardant Plastic |
| Standard | UL94V-0 rated |
| Front Connection | |
| Contact Type | Spring Wire |
| Material | Phosphor Bronze Alloy Plated with 50 micro-inch of Gold over 70~100 micro-inch of Nickel |
| Rear Terminals | |
| Terminal Type | IDC |
| Material | Phosphor Bronze Alloy with 100 micro-inch 100% Sn Alloy |
| Physical Ranges | |
| Temperature Range | Storage : -40 to +70°C | Operational : -10 to +60°C |
| Relative Humidity | Operational : Max. non-condensing 93% |
| Retention | 50N (11 Ibs) for 60s ± 5s |
| Insertion/Extraction Life | 750 cycles minimum |
| No. of IDC Terminations | 200 minimum |
| Electrical | |
| Insulation Resistance | 500 MΩ min.@ 100V d.c |
| Dielectric Withstanding Voltage | 1000 V d.c. or a.c. Peak Contact to Contact @ 60 Hz for 1 MIN. |
| Spring Wire Contact Resistance | 20 mΩ Max |
| Voltage/Current Rating | 150VAC/1.5A |
| IDC Contact Resistance | 2.5 mΩ Max |
