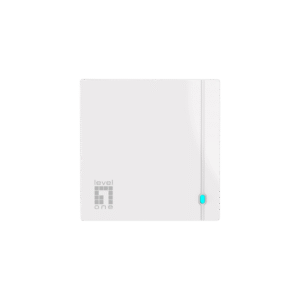

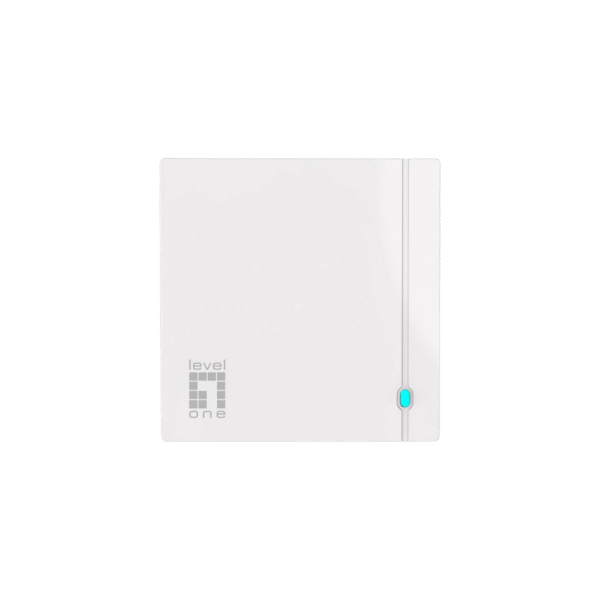

WAP-8231 AX1800 Dual Band Wi-Fi 6 In-Wall PoE Wireless Access Point
- Description
- Specification
- Download
Description
The LevelOne new access point, the WAP-8231, can be used to create wireless networks that are not only technically perfect but also visually perfect. Since there is almost not to see with the wireless access point hardware: The wireless access point – just like a power outlet – is simply mounted on the wall. hotels and guesthouses can carefully set up WLANs for guests in each room. It can achieve a combined speed of up to 1800 Mbps. The WAP-8231 operates in the 2.4 and 5 GHz bands and can also be used as part of a managed network when controlled by the LevelOne WAC-2010 / WAC-2013 WLAN controller.
LevelOne WAP-8231 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.
| Logistics Data. | |
|---|---|
| Harmonized System (HS) code. | 851762 |
| Customs product code (TARIC). | 8517620000 |
| Features 1. | |
| Features. | ● Web-Based GUI Configuration ● Multiple SSID (4 SSID for 2.4GHz, 4 SSID for 5GHz) |
| Miscellaneous. | |
| Frequency band. | 2.4/5GHz(Dual bands) |
| PoE Supported. | Yes |
| Wireless AP type. | Inwall |
| Max. Wi-Fi Data Rate. | 1800Mbps |
| Performance 2. | |
| Receiver sensitivity. | 2.4 GHz Radio : ● 802.11b / 1Mbps / RX Sensitivity : -92 (dBm) ● 802.11b / 11Mbps / RX Sensitivity : -85 (dBm) ● 802.11g / 6Mbps / RX Sensitivity : -90 (dBm) ● 802.11g / 54Mbps / RX Sensitivity : -72 (dBm) ● 802.11n HT20 / MCS0 / RX Sensitivity : -88 (dBm) ● 802.11n HT20 / MCS7 / RX Sensitivity : -70 (dBm) ● 802.11n HT40 / MCS0 / RX Sensitivity : -86 (dBm) ● 802.11n HT40 / MCS7 / RX Sensitivity : -68 (dBm) ● 802.11ax HE20 / MCS0 / RX Sensitivity : -85 (dBm) ● 802.11ax HE20 / MCS11 / RX Sensitivity : -60 (dBm) ● 802.11ax HE40 / MCS0 / RX Sensitivity : -85 (dBm) ● 802.11ax HE40 / MCS11 / RX Sensitivity : -56 (dBm) 5 GHz Radio : |
| Physical Specifications. | |
| Dimensions (W x D x H). | 87 x 86 x 31.5 mm |
| Product weight (kg). | 0.138 |
| System Specifications. | |
| Antenna. | 4 Built-in 3dBi antennas |
| EIRP (dBm). | < 18 dBm |
| Encryption. | ● WPA2 Personal (AES) ● WPA3 Personal (AES) |
| Flash memory size. | 16 MB |
| Frequency band. | ● 2.412 to 2.484 GHz ● 5.18GHz to 5.825GHz |
| Indicators. | WIFI status |
| Mount. | Wall mount |
| Operating modes. | AP Mode |
| Port Configuration. | ● WAN: 10/100/1000M Ethernet(PoE) port ● LAN: 10/100/1000M Ethernet port via USB-C to RJ-45 adapter |
| Power consumption. | < 14W |
| Power supply included. | No |
| RAM size. | 128 MB |
| Standard. | ● IEEE 10BASE-T (IEEE 802.3) ● IEEE 100BASE-TX (IEEE 802.3u) ● IEEE 1000BASE-T (IEEE 802.3ab) ● IEEE 802.11a/b/g/n/ac/ax ● IEEE 802.3af Power over Ethernet |
| Wireless channels. | ● 2.4GHz: 1-13 ● 5GHz: 36-64, 100-140, 149-165 |
| Others. | |
| Approval and Compliance. | ● CE ● RoHS |
| Operating humidity. | 10% RH ~ 90% RH |
| Operating temperature. | 10°C ~ 40°C |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -40°C ~ 70°C |
| Package Contents. | ● WAP-8231 ● USB-C to RJ-45 adapter ● Screw Kit ● Quick Installation Guide ● Declaration of Conformity |
| General. | |
| Color. | White |
| EAN. | 4015867235690 |
| Model Number. | WAP-8231 |
