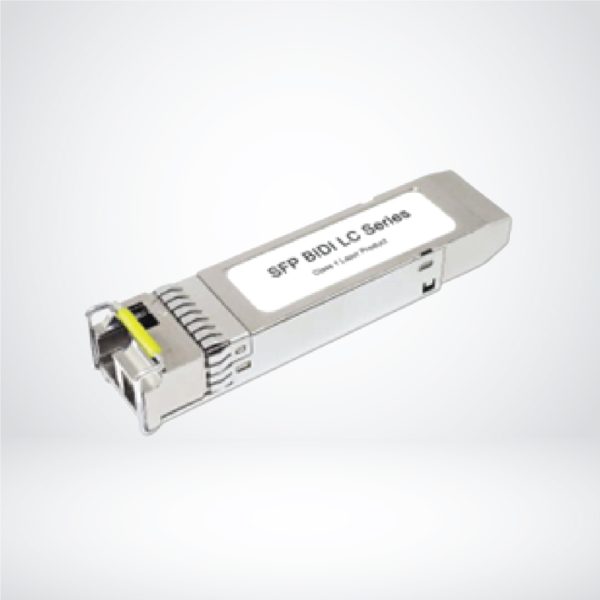

1000BASE Tx1550/ Rx1310 SM LC Simplex (BiDi) SFP Transceiver with DDM– 20KM – FSFP-C8-S53-20D
• Compatible with 3ah 1000BASE-BX10-D
• Compliant with Fiber Channel 100-SM-LC-L
• Compliant with INF-8074i SFP MSA
• Hot Pluggable
• 1550nm DFB laser transmitter
• Simplex LC connector
• 2-wire interface for management and diagnostic monitor compliant with SFF-8472
• Single +3.3V power supply
• Link distance 20km over SM fiber
• RoHS Compliant
- Overview
- Specification
FSFP-C8-S53-20D Small Form Factor Pluggable SFP transceivers are compliant with the current SFP
Multi-Source Agreement (MSA) Specification. The high performance uncooled 1550nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Gigabit Ethernet 1000BASE-BX10 and Fiber Channel 1GFC applications up to SMF 20km optical links
Applications:
• Gigabit Ethernet 1000BASE-BX10 @1.25G
• Fiber Channel 1GFC @1.0625G
Laser Safety:
• This is a Class 1 Laser Product complies with 21 CFR 10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.
• Caution: Use of control or adjustments or performance of procedure other than those specified herein may result in hazardous radiation exposure
Absolute Maximum Ratings:
Parameters | Symbol | Min. | Max. | Unit |
Storage Temperature | TST | -40 | +85 | °C |
Storage Relative Humidity | RH | 5 | 95 | % |
Supply Voltage | VCC | -0.5 | +4.0 | V |
Recommended Operating Conditions:
Parameters | Symbol | Min. | Typ. | Max. | Unit |
Case Operating Temp. (FSFP-C8-S53-20D) | TOP | 0 | – | +70 | °C |
Case Operating Temp. (FSFP-C8-S53-20Di) | TOP | -40 | – | +85 | °C |
Supply Voltage | VCC | +3.13 | +3.3 | +3.47 | V |
Supply Current (FSFP-C8-S53-20D) | ICC | 250 | mA | ||
Supply Current (FSFP-C8-S53-20Di) | ICC | 280 | mA |
Transmitter Electro-optical Characteristics:
VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C (FSFP-C8-S53-20D); TOP = -40 °C to 85 °C (FSFP-C8-S53-20Di)
Parameters | Symbol | Min. | Typ. | Max. | Unit | Note |
Operating Data Rate | DR | 1.0625 | 1.25 | Gb/s | ||
Optical Launch Power | Po | -8 | -2 | dBm | 1 | |
Optical Center Wavelength | λc | 1530 | 1550 | 1570 | nm | |
Spectral Width (-20dB) | Δλ | 1 | nm | |||
Side Mode Suppression Ratio | SMSR | 30 | dB | |||
Optical Extinction Ratio | ER | 9 | dB | |||
Optical Eye Mask | IEEE802.3z | |||||
Relative Intensity Noise | RIN | -120 | dB/Hz | |||
Differential Data Input Swing | VIN | 180 | 1200 | mV | ||
TX Disable Input Voltage-Low (TX ON) | TDISVL | GND | 0.8 | V | ||
TX Disable Input Voltage-High (TX OFF) | TDISVH | 2.0 | Vcc | V | ||
TX Fault Output Voltage-Low (TX Normal) | TFLTVL | GND | 0.8 | V | ||
TX Fault Output Voltage-High (TX Fault) | TFLTVH | 2.0 | Vcc | V |
Note1: The optical power is launched into a 9/125μm single mode fiber.
Receiver Electro-optical Characteristics:
VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C (FSFP-C8-S53-20D); TOP = -40 °C to 85 °C (FSFP-C8-S53-20Di)
Parameters | Symbol | Min. | Typ. | Max. | Unit | Note |
Operating Data Rate | DR | 1.0625 | 1.25 | Gb/s | ||
Receiver Sensitivity | SEN | -23 | dBm | 1 | ||
Maximum Receive Power | PRX-MAX | -3 | dBm | 1 | ||
Optical Center Wavelength | λc | 1260 | 1360 | nm | ||
LOS De-Assert | LOSD | -24 | dBm | |||
LOS Assert | LOSA | -35 | dBm | |||
LOS Hysteresis | LOSHY | 0.5 | dB | |||
Differential Data Output Swing | VOUT | 600 | 1000 | mV | ||
Receiver LOS Signal Output Voltage-Low | LOSVL | GND | 0.8 | V | ||
Receiver LOS Signal Output Voltage-High | LOSVH | 2.0 | Vcc | V |
Note1: Measured with a PRBS 27-1 test pattern @1.25Gbps BER<10-12.
