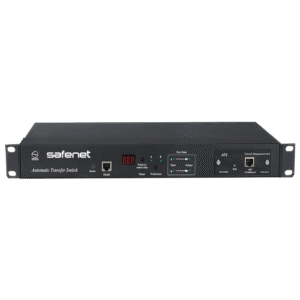

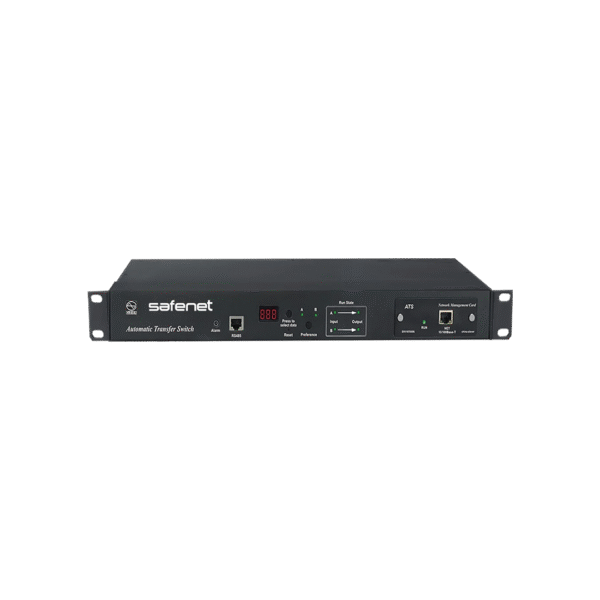

16 Amp SNMP Managed Automatic Transfer Switch (ATS) – AR128H0812
-
Support VGA, DVI, HDMI, DP Port servers Connectivity
-
Supports Windows, Linux, Unix, Mac, Solaris (Sun), Redhat, Ubuntu
-
Support Keyboard and mouse emulation to ensure the normal booting
- Description
- Download
Description
BENEFITS
- Automatic Transfer Switches (ATS) provide reliable, redundant rack mount power to single-corded equipment. The ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the ATS will seamlessly source power from the secondary source without interrupting critical loads.
Reliable Transfer Switch
- Reliable, Seamless Automatic Power Transfer Switching.
- LED Indicators show active power source.
Hot-swap NMC Module
- ATS has a hot-swap network management card which enables you to upgrade the Basic ATS to an Intelligent One without affecting the outlet states.
Web-based Remote Power Monitoring
- Real-time remote power quality monitoring with user-definable thresholds and alerts for voltage and current. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time.
Wide range of input and output connections
- Includes a variety of input and output connections to distribute 110V, or 220V power to multiple outlets including IEC320 C13/C19 and Industrial connectors. Having a variety of inputs and outputs allows users to adapt to varying power requirements.
FEATURE
- Intelligent ATS supports an add-on hot-swap SNMP card which will enable HTTP/HTTPS and SNMP communication for the ATS. Users will be able to monitor the input/output status, parameters of the ATS, and receive alarming messages remotely.
MAIN FUNCTION
- Rapid Power Switch: Seamlessly switch between source A and source B to ensure power continuity for the IT device. Transfer time 10~16ms.
- Hot-swappable SNMP Card: Users can simply upgrade the basic ATS to an intelligent one by inserting a hot-swappable Network Management Card, which enables users to monitor and manage the ATS with a web interface or SNMP platform.
- Monitoring & Alarming: ATS also helps to optimize and improve the energy efficiency of the IT room with real-time current and voltage monitoring and automatic alarms when thresholds are exceeded.
Network Management Card
- Inserting a hot-swappable Network Management Card, users can upgrade the basic ATS to an intelligent one easily. This enables users to monitor and manage the ATS with a web interface or SNMP browser.
Built-in web interface
- Preference Setting
- Panel Lock/Unlock
- Name Configuration
