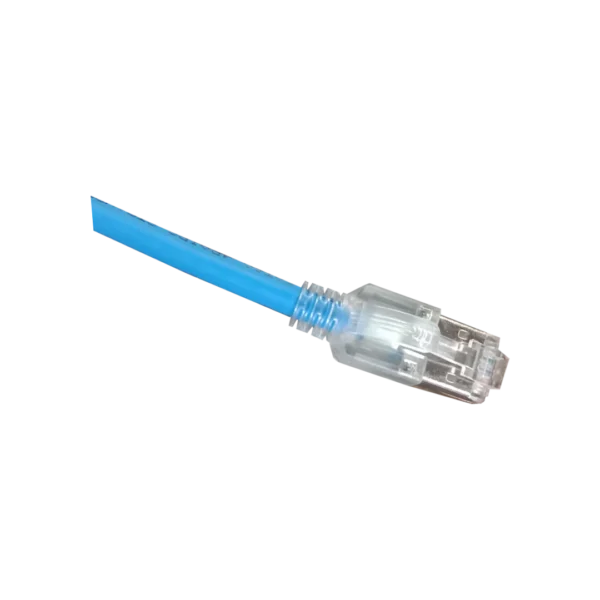

Cat6A SFTP LSZH Patch Cord 28AWG- 3M
Features
- 24 AWG SOLID-Bare Copper Conductor
- Diameter of dielectric core: P1&P3: 0.94+- 0.005mm
- P2&P4: 0.092+-0.005mm
- Foam-PE Solid Insulation 1.05+-0.05mm
- 4 Pair with PVC/LSZH Outer Jacket Gray Colour
- Outer Jacket Colour Light Gray
- External Diameter 6.0+-0.2mm
- Plug Structure:
- Housing: Polycarbonate,Nikel Plated Metal Shilded
- Contact Material: Copper alloy
- Description
- Specification
- Download
Description
Additional Information
- Color : Orange
- Available Length : 0.5M, 1M, 3M, 5M, 10M
Structure
- 24 AWG SOLID-Bare Copper Conductor
- Diameter of dielectric core: P1&P3: 0.94+- 0.005mm
- P2&P4: 0.092+-0.005mm
- Foam-PE Solid Insulation 1.05+-0.05mm
- 4 Pair with PVC/LSZH Outer Jacket Gray Colour
- Outer Jacket Colour Light Gray
- External Diameter 6.0+-0.2mm
- Plug Structure:
- Housing: Polycarbonate,Nikel Plated Metal Shilded
- Contact Material: Copper alloy
- Contact Plating: Gold over nickel
Electrical Performance
- Impedance: 100 15ohm
- Capacitance unbalance pair to ground: max. 330pf/100m Max
- DC Insulation Resistance (Min.): 1500M ohm/100m min
- Resistance unbalance(Max.):3% MAX./100m
- Applicable Environment:
- Patch Panel to Patch Panel Connections
- PC to information Outlet Connections
- Information outlet to telecommunication closet connections
- Equepment & DTE connections
