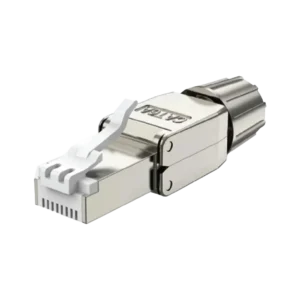

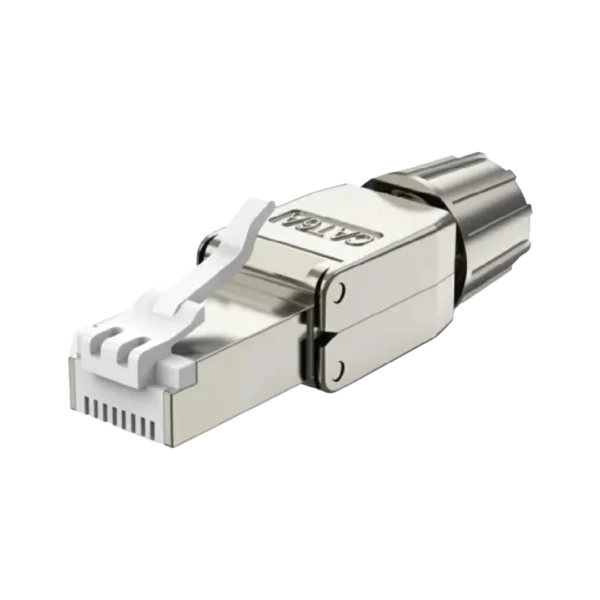

CAT6A Shielded Toolless RJ45 Plug
- Description
- Specification
- Download
Description
ELECTRICAL
- CONTACT RESISTANCE: 20m OMH
- INSULATION RESISTANCE: <=500m OMH @ 100v DC
- WITHSTAND VOLTAGE: DC1000V AC700V RMS 60Hz IMIN
- CAT6 PERMANENT LINK: CONFIRM TO ANSI/TIA/EIA 568B. 2-10
MECHANICAL
- SHIELDED MATERIAL: ZINC ALLOY NICKEL PLATING
- GOLD PINS: PHOSPHO BRONZE, GOLD PLATING 3U“
- TERMINAL PINS: PHOSPHO BRONZE, ZIN PLATING
- RJ45 CONTACT LIFE: 750 TIMES MIN
- IDC TERMINAL LIFE: 250 TIMES MIN
CABLE MATCHED
- SOLID AND STRANDED
- 22AWG/23AWG/24AWG
ENVIRONMENTAL
- OPERATION: -10° / + 60°
- OPERATION: -10° / + 60°
