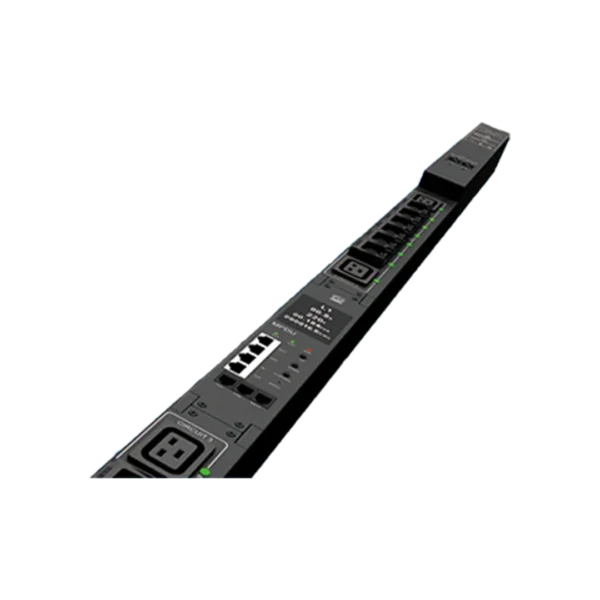

Class-D Two Phase Intelligent Managed PDU
- Description
- Specification
- Download
Description
Built for Reliability
The PDU features hot-swappable monitoring, allowing repairs or upgrades without turning off power, ensuring IT devices stay online longer. Patented locking outlets securely hold cords in place, preventing accidental unplugging and ensuring a stable connection.
High Resolution LCD Display
2.8” FTF color LCD with high resolution displays crystal clear and rich information of PDU data and configuration.
Upgradable & Scalable Output Modules
Meet the needs of developing technologies and changing business.
Cable Retention Clip
Effectively prevent downtime caused by accidental cable fallout.
Billing Grade Accuracy
Accurate kWh metering function measures actual energy usage for charge-back billing.
Flush Mount Low Profile Design
Low profile magnetic circuit breaker and slim chassis save valuable space in the rack.
Various Outlets Available
Built-to-Order options available for additional configuration needs like UK, Schuko, Australia or even mixed receptacles.
Environmental Monitoring
Optional plug-and-play environmental sensors alert potential threats which could cause downtime.
Upgradable & Hot-Swap Controller
The Controller can be replaced or upgraded without the need to power down your rack.
Configurable Color
Color-coded Chassis or outlet configurable color including red, blue, yellow, orange are available on request.
Daisy-Chain
Enables multiple MPDUs to share the same network thus to save IP resources.
Flexible Mounting Options
Pre-installed button or brackets mounting for vertical MPDUs into the rack.
High-Density Power Distribution
Fewer PDUs with more outlets in the same space to support data center power needs.
| Model | TKhsysg |
|---|---|
| Integrated 8 or 16 Ports | Push button, UI interface, Web |
| Part Emulation | LCD Model |
| Viewing Area | 18.5″ |
| Optimum Resolution | 1920×1080@60Hz |
| LCD Monitor | Display Color: 16.7 M |
| Brightness: 350cd/m² (Typ) | |
| Contrast Ratio: 1000:1 (Typ) | |
| Pixel pitch(mm): 0.213(H) x 0.213 (V) | |
| Mouse | X/Y Resolution: >1000 points / inch, (40 points/mm) |
| Trackball Function | Supports |
| Keyboard | 10/100/1000Mbps RJ-45 Copper |
| Ethernet Interface | 3840*2160 /60hz |
| Remote Control | KVM Control (ActiveX Control) |
| Remote Management | WEB browser-based |
| RS485 Serial Interface | RJ-45 Copper |
| Security | Supports DES, AES128, AES256 Encryptions |
| Optimum Resolution | 1920×1080@60Hz |
| Input Power: 100V – 240Vac, 50 ~ 60Hz, <1.5A | |
| Power Consumption: 35W | |
| Operating Temperature: 0 ~ 50 ? | |
| Storage Temperature | -20 ~ 60 ? |
