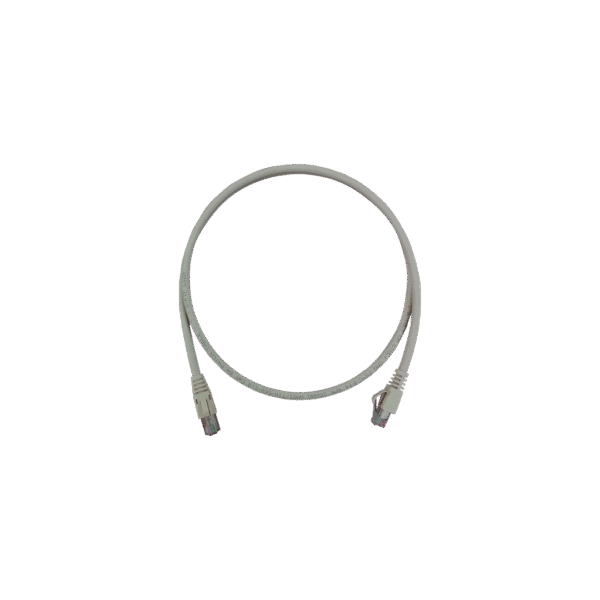

PowerMAX+ Cat.6A F/UTP Patch Cord – LSZH

DINTEK PowerMAX+^TM Shielded Foil Wrapped UTP Patch Cords are key components of the PowerMAX+^TM F/UTP end-to-end solution. They are specifically designed to support high speed data networks for 10-Gigabit Ethernet applications and are fully tested to meet ANSI/TIA-568.2-D Cat.6A channel requirements. The patch cables are made from high quality shielded four pair 26AWG stranded wire.

DINTEK PowerMAX+^TM patch cords are pre-terminated with RJ45 shielded plugs and feature anti-snag strain relief boots. DINTEK recommends the entire range of PowerMAX+^TM shielded products be used in an end-to-end system to maximize cabling performance.

• 10GBASE-T Ethernet
• 100BASE-TX Fast Ethernet
• 1000BASE-TX Gigabit Ethernet
• 1000BASE-T Gigabit Ethernet
• 10BASE-TX Ethernet
• ATM CB1G
• 155/622 Mbps ATM
• 100 Mbps TP-PMD
• 100VG-AnyLAN
• 4/16 Mbps Token Ring
• Voice

• Component level performance
• Molded boots prevent pin from bending and cables from kinking
• Stranded wire provides maximum flexibility
• Fully tested to meet ANSI/TIA-568.2-D Cat.6A requirements
• The mechanical characteristics and transmission performance meet 10GbaseT Ethernet, 16Mbps token Ring, 10Base-T, 100BaseT, 155Mbps, 622Mbps ATM, Gigabit-Ethernet and 1.2Gbps ATM

• UL Listed
• Meet Cat.6A channel performance for in ANSI/TIA-568.2-D
• CENELEC EN 50173-1, CENELEC EN 50288-10-1
• ISO/IEC 2nd Edition 11801 Class EA
• RoHS-6 Compliant
