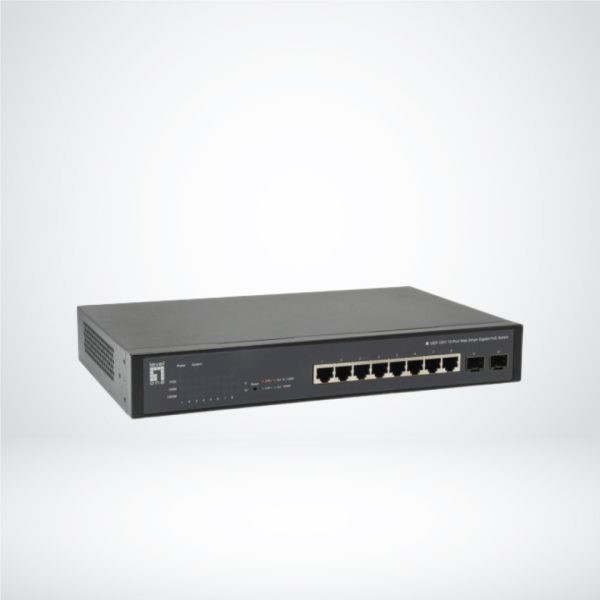

10-PORT (8 POE OUTPUTS + 2 X GIGABIT SFP) WEB SMART GIGABIT POE SWITCH – GEP-1051

• 8 Gigabit PoE ports and 2 Gigabit SFP slots

• IEEE 802.3af/at PoE compliant to simplify deployment and installation

• IEEE 802.1d/w/s Spanning Tree Protocol (STP) and port mirroring

• Supports port-based VLAN, IEEE 802.1Q VLAN Tagging

• IEEE 802.3ad LACP for auto port aggregation

• MLD, Telnet, SNMP V1, V2c & V3, RMON, Web  Browser, and TFTP Management

• Total PoE power budget: 70W, up to 30W per port

Compare Compare

The GEP-1051 is a web-smart switches designed for the SMB market. The switches can be deployed indifferent target network topologies, from small to large. The GEP-1051 is a full-PoE fanless design switch, it supports up to 4 ports at 15.4 W, or 2 ports at 30 W to meet the increasing power demands of users.As well as IPv4 and IPv6 features. The GEP-1051 includes the best green-saving techNAlogies(IEEE 802.3az and Green-Ethernet). Using the Energy Efficient Ethernet standard, the switch automatically decreasespower usage when network traffic is low.

Approval and compliance ● CE Marking
● FCC Part 15 (CFR 47) Class A
● UL 60950-1
● BSMI Class A
● VCCI Class A
● CB
● RoHS
Operating humidity 0% RH ~ 90% RH
Operating temperature 0°C ~ 45°C
Storage humidity 10% RH ~ 90% RH
Storage temperature -40°C ~ 70°C
Acoustic noise (dB) 0 dB (A)
Backplane (Gbps) 20Gbps
Packet buffer 4.1 Mbits

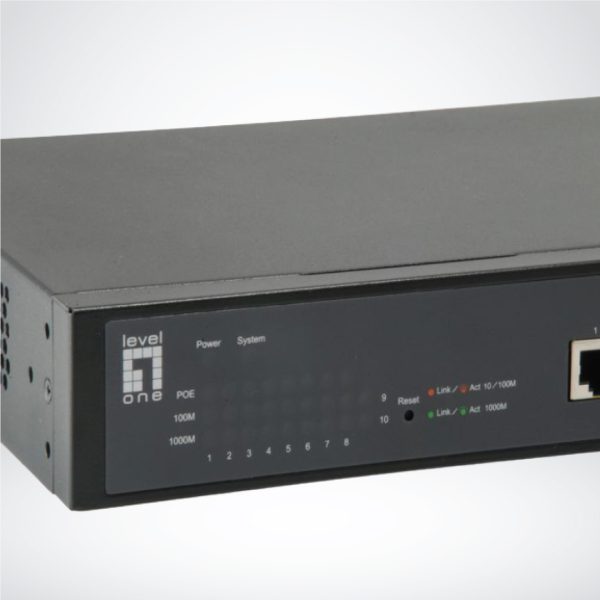

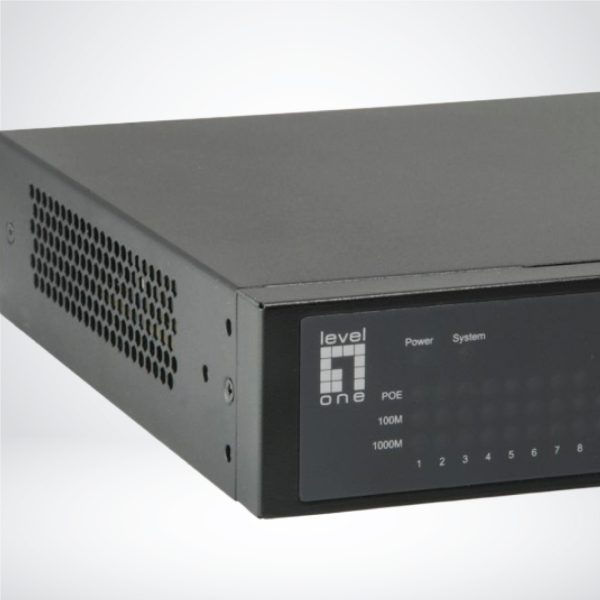

Indicators ● Power
● Link/Active
● System
Jumbo frame (KB) 10
MAC address table 8K
RAM size 128 MB
Flash memory size 16 MB
Mount 19″ rack mount
Pin assignment and polarity 1/2 (+), 3/6 (-)

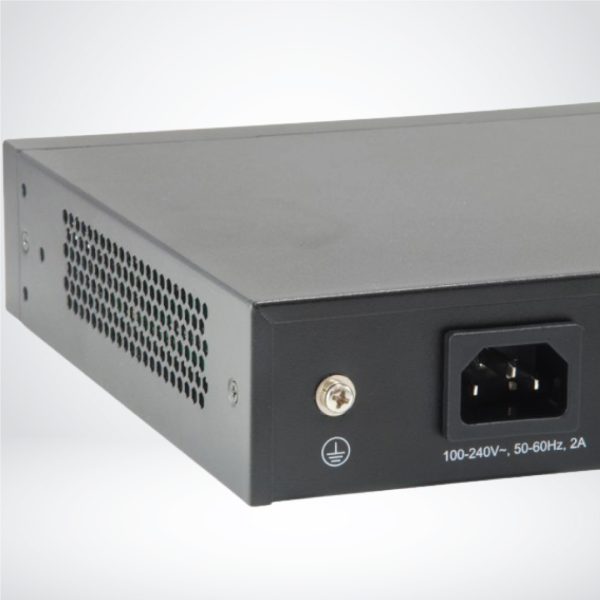

Power supply AC power
Standards ● IEEE 802.3 10-BASE-T, Ethernet
● IEEE 802.3u 100-BASE-TX, Fast Ethernet
● IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
● IEEE 802.3z 1000BASE-X,Gigabit Ethernet
● IEEE 802.3u (100BASE-FX) transceivers
● IEEE 802.3z (1000BASE-SX/LX/LHX/ZX) transceivers
● IEEE 802.1p Quality of Service (QoS)
● IEEE 802.1Q Virtual LANs (VLANs)
● IEEE 802.1D Spanning Tree Protocol (STP)
● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
● IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP)
● IEEE 802.3x Flow Control
● IEEE 802.3ad Link Aggregation Control Protocol (LACP)
● IEEE 802.3af Power over Ethernet (PoE)
● IEEE 802.3at Power over Ethernet Plus (PoE+)
● IEEE 802.3az Energy-Efficient Ethernet

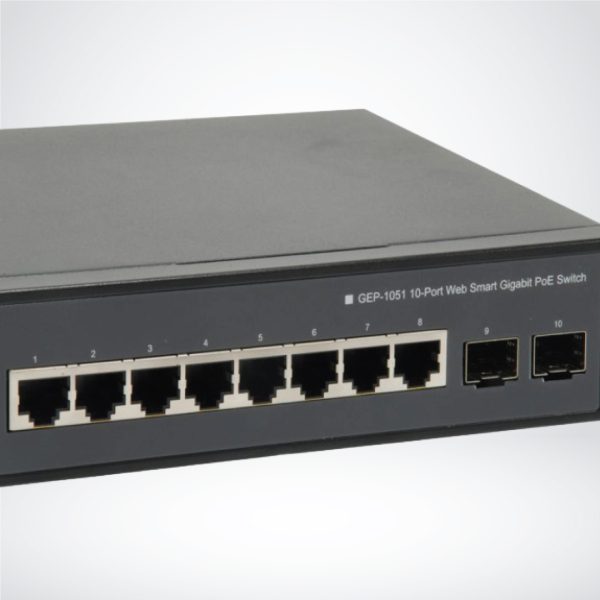

Port configuration 8 RJ-45 10/100/1000 Ports, 2 100/1000 SFP Ports
Features HTTP/ SNMP over IPv6 Quality of Service (QoS)
● Rate-limiting
● 8 Priority queues per portTraffic Scheduling
● SPQ (Strict Priority Queuing)
● WRR (Weighted Round Robin)
● Hybrid
● Port-Based QoS
● IPv4/IPv6 DSCP
● DiffServ
● HW Queues (8 queues)

Spanning Tree Protocol
● IEEE 802.1D Spanning Tree Protocol (STP)
● IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
● IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP)
● Loopback Detection
● BDPU Filter
● BDPU Forward
● Root Guard

IPv6 Management
● IPv6 over Ethernet (RFC2464)
● IPv6 Dual Stack (RFC 4213)
● IPv6 Neighbor Discovery (RFC 4861)
● IPv6 Address/ Mask/ Gateway
● IPv6 Ping /Trace
● IPv6 Telnet
● IPv6 Syslog

IGMP Snooping
● IGMP v2/v3 snooping
● IGMP Filtering/Throttling
● IGMP Queries
● IGMP Immediate leave
● MLD Snooping
● HTTP/ SNMP over IPv6

Product weight (kg) 2
Color Black
EAN 4015867205013
Model Number GEP-1051
Package contents ● GEP-1051
● Power Cord
● 19″ Rack Mount Kit
● Resource CD (User Manual, QIG)
● Quick Installation Guide
Gigabit RJ45 8
Gigabit SFP 2
802.3af/at PoE 8
Switching capacity 20 Gbps
Grade Commercial
Data Rate Gigabit Ethernet
PoE Supported Yes
Manageable Yes
Fanless Yes
Concurrent ports 10.00 Ports
PoE Power Budget 70.00 Watts
Power consumption 80W
Heat dissipation 267.95 (Btu/H)
