24-Port Ethernet PoE Switch with 2 x Gigabit RJ45 Ports – FGP-2601

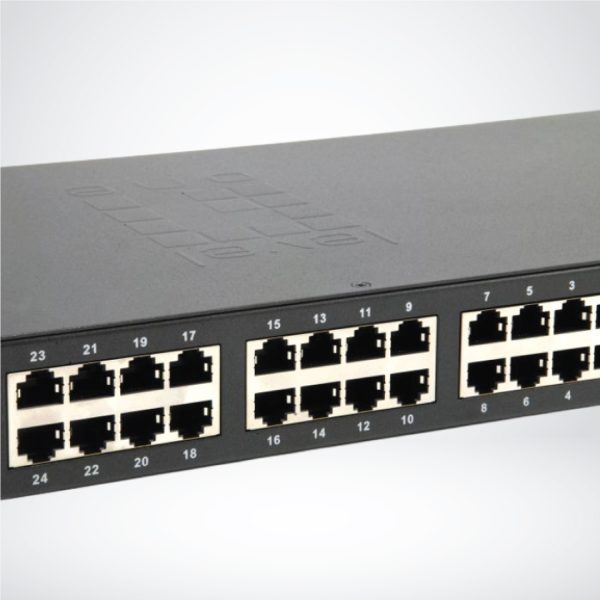

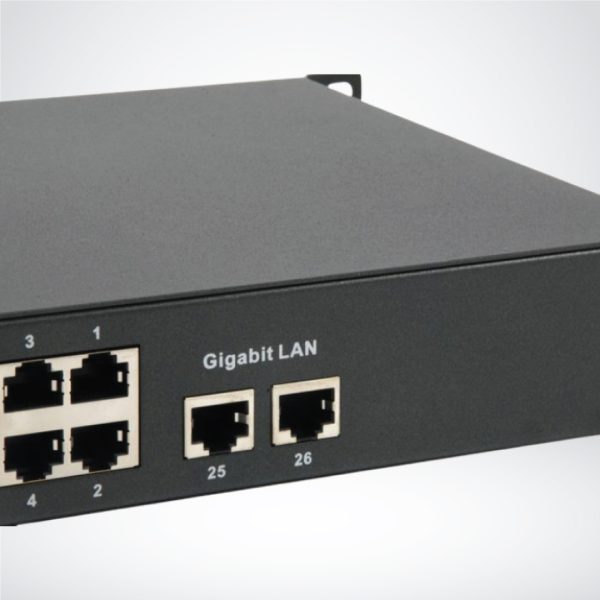

• 24 Fast Ethernet PoE ports and 2 Gigabit ports

• IEEE 802.3af/at PoE compliant to simplify deployment and installation

• Power protection: overvoltage / overcurrent / overtemperature

• IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

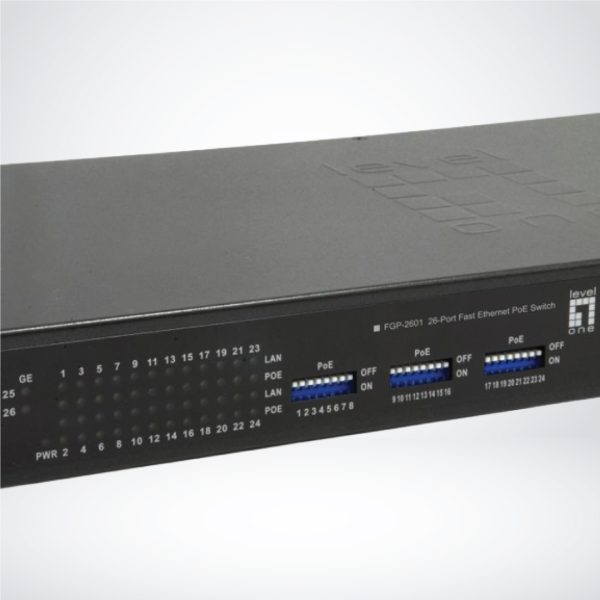

• PoE on/off control per port by dip switches

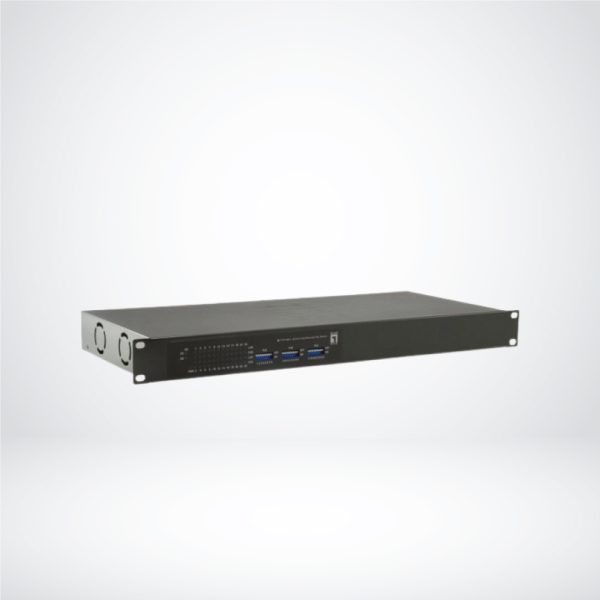

• 19-inch metal housing

Compare Compare

The LevelOne FGP-2601 series are unmanaged PoE switches with 24 RJ45 PoE ports. The switches are IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with a total power budget of 150/250/380/500/630W, or up to 30W per port. Ideal for desktops, they are also 19-inch rack-mountable, which provides convenient and flexible installation. The FGP-2601 switches are designed for small-to-medium businesses that require an affordable solution for deploying PoE infrastructure.

Approval and compliance FCC Class A, CE

EMI:
EN55032:2012+AC:2013
EN55022:2010+AC:2011
AS/NZS CISPR 22 Amdt. (2010)
EN61000-3-2:2014
EN61000-3-3:2013
EMS:
EN55024:2010
IEC61000-4-2:2008
IEC61000-4-3:2006+A1:2007+A2:2010
IEC61000-4-4:2012
IEC61000-4-5:2005
IEC61000-4-6:2013
IEC61000-4-8:2009
IEC61000-4-11:2004″FCC Class A, CE

EMI:
EN55032:2012+AC:2013
EN55022:2010+AC:2011
AS/NZS CISPR 22 Amdt. (2010)
EN61000-3-2:2014
EN61000-3-3:2013
EMS:
EN55024:2010
IEC61000-4-2:2008
IEC61000-4-3:2006+A1:2007+A2:2010
IEC61000-4-4:2012
IEC61000-4-5:2005
IEC61000-4-6:2013
IEC61000-4-8:2009
IEC61000-4-11:2004″FCC Class A, CE

EMI:
EN55032:2012+AC:2013
EN55022:2010+AC:2011
AS/NZS CISPR 22 Amdt. (2010)
EN61000-3-2:2014
EN61000-3-3:2013
EMS:
EN55024:2010
IEC61000-4-2:2008
IEC61000-4-3:2006+A1:2007+A2:2010
IEC61000-4-4:2012
IEC61000-4-5:2005
IEC61000-4-6:2013
IEC61000-4-8:2009
IEC61000-4-11:2004″FCC Class A, CE

EMI:
EN55032:2012+AC:2013
EN55022:2010+AC:2011
AS/NZS CISPR 22 Amdt. (2010)
EN61000-3-2:2014
EN61000-3-3:2013
EMS:
EN55024:2010
IEC61000-4-2:2008
IEC61000-4-3:2006+A1:2007+A2:2010
IEC61000-4-4:2012
IEC61000-4-5:2005
IEC61000-4-6:2013
IEC61000-4-8:2009
IEC61000-4-11:2004″FCC Class A, CE

EMI:
EN55032:2012+AC:2013
EN55022:2010+AC:2011
AS/NZS CISPR 22 Amdt. (2010)
EN61000-3-2:2014
EN61000-3-3:2013
EMS:
EN55024:2010
IEC61000-4-2:2008
IEC61000-4-3:2006+A1:2007+A2:2010
IEC61000-4-4:2012
IEC61000-4-5:2005
IEC61000-4-6:2013
IEC61000-4-8:2009
IEC61000-4-11:2004″FCC Class A, CE

EMI:
EN55032:2012+AC:2013
EN55022:2010+AC:2011
AS/NZS CISPR 22 Amdt. (2010)
EN61000-3-2:2014
EN61000-3-3:2013
EMS:
EN55024:2010
IEC61000-4-2:2008
IEC61000-4-3:2006+A1:2007+A2:2010
IEC61000-4-4:2012
IEC61000-4-5:2005
IEC61000-4-6:2013
IEC61000-4-8:2009
IEC61000-4-11:2004″FCC Class A, CE

EMI:
EN55032:2012+AC:2013
EN55022:2010+AC:2011
AS/NZS CISPR 22 Amdt. (2010)
EN61000-3-2:2014
EN61000-3-3:2013
EMS:
EN55024:2010
IEC61000-4-2:2008
IEC61000-4-3:2006+A1:2007+A2:2010
IEC61000-4-4:2012
IEC61000-4-5:2005
IEC61000-4-6:2013
IEC61000-4-8:2009
IEC61000-4-11:2004″

Operating humidity 10% RH ~ 90% RH
Operating temperature 0°C ~ 50°C
Storage humidity 10% RH ~ 90% RH
Storage temperature -20°C ~ 70°C
Backplane (Gbps) 10/100/1000Mbps
Indicators Power, Uplink, LAN 1~24 port, PoE 1~24 port
Jumbo frame (KB) 10
MAC address table 4K
Flash memory size 512Kbit
Mount 19″ rack mount
Power output Per Port 56VDC, Max. 30 watts (802.3at)
Standards IEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet PlusIEEE 802.3 10-BASE-T (Ethernet)
IEEE 802.3u 100-BASE-TX (Fast Ethernet)
IEEE 802.3ab 1000BASE-T (Gigabit Ethernet)
IEEE 802.3x Flow Control (full-duplex flow control)
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
Product weight (kg) 2,9
Color Black
EAN 4015867202791
Model Number FGP-2601W150
Package contents FGP-2601W150
Stromkabel
Bedienungsanleitung
Fast Ethernet multi-mode ST 2
802.3af/at PoE 24
Switching capacity 8.8Gbps
Grade Commercial
Data Rate Fast and Gigabit Ethernet
PoE Supported Yes
Manageable No
Fanless No
Concurrent ports 26.00 Ports
PoE Power Budget 150.00 Watts
