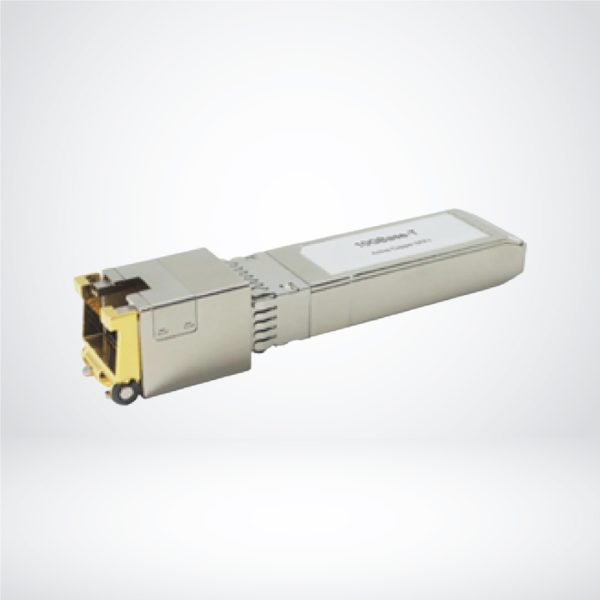

10G-T Copper RJ-45 SFP+ Transceiver – 30M – FSPP-HJ-T11-X1
Compliant with IEEE 802.3az, 802.3ab and 802.3 standard
Compliant with SFP+ MSA (SFF-8431, SFF-8432)
Support 10GBase-T/ 5GBase-T/ 2.5GBase-T/ 1000Base-T
• Hot Pluggable
• Auto-negotiates with other 10GBase-T PHYs
• Auto-detect MDI/MDI-X
• Support RX_LOS function
• I2C 2-wire interface for serial ID and PHY register access
• RJ-45 connector
• Single +3.3V power supply
• 10G link length up to 30m with Cat.6a/7, 2.5G/5G link length up to 50m with Cat.5E, 1G link length up to 100m with 5E
• RoHS Compliant
- Overview
- Specification
The FSPP-HJ-T11-X1 Small Form Factor Pluggable SFP+ Copper transceivers are compliant with the current SFP+ Multi-Source Agreement ( MSA ) Specification. The high performance designed is integrated full duplex data link at 10Gbps over four pair Category 6a/7 cable up to 30m links. It is specifically designed for high speed communication links that require 10 Gigabit Ethernet over copper cable.
Applications:
• 1G/ 5G/ 5G/ 10GBase-T Application
• High speed I/O for file server
• Mass storage system I/O
• Bus extension application
Absolute Maximum Ratings :
| Parameters | Symbol | Min. | Max. | Unit |
| Storage Temperature | TST | -40 | +85 | °C |
| Supply Voltage | Vcc | -0.5 | +4.0 | V |
| Storage Relative Humidity | RH | 5 | 95 | % |
Recommended Operating Conditions
| Parameters | Symbol | Min. | Typ. | Max. | Unit |
| Case Operating Temperature | TOP | 0 | – | +70 | °C |
| Supply Voltage | Vcc | +3.13 | +3.3 | +3.47 | V |
| Supply Current | Icc | 880 | mA | ||
| Power Consumption @30m | Pcw | 2.9 | W |
General Specifications :
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Note |
| Data Rate | DR | 1 | 10.3125 | Gb/sec | ||
| Bit Error Rate | BER | 10-12 |
High-Speed Electrical Interface, Host to SFP+
VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Note |
| TD+, TD- Input Voltage Swing | VIN+ / VIN- | 250 | 1200 | mV | 1 | |
| RD+, RD- Output Voltage Swing | Vout+ / Vout- | 350 | 800 | mV | 1 | |
| Rise Time (Receiver) | Tr | 175 | ps | 2 | ||
| Fall Time (Receiver) | Tf | 175 | ps | 2 | ||
| Tx Input Impedeance | Zin | 50 | Ohm | 1 | ||
| Rx Output Impedeance | Zout | 50 | Ohm | 1 |
Note1: Single ended
Note2: 20% to 80% value
High-Speed Electrical Interface, Cable to SFP+
VCC= 3.13V to 3.47V, TOP = 0 °C to 70 °C
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Note |
| TX Output Impedance | Zout.TX | 100 | Ohm | 1 | ||
| RX Output Impedance | Zin.RX | 100 | Ohm | 1 |
Note1: Differential for frequencies ranging from 125MHz to 10.3125GHz
