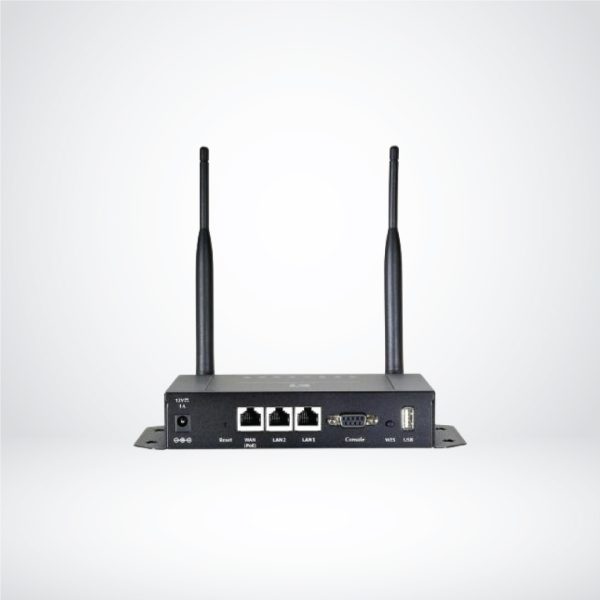

300Mbps Wireless PoE Hotspot Gateway – WHG-1000
• Property management system integration for hotel
applications
• Integrated Authentication, Authorization and Accounting
(AAA) server
• Multiple authentication methods for pre-generated ticket,
on-demand, local/remote RADIUS and LDAP
• Dual WAN interfaces with auto-failover function to ensure
an always-on connectivity
• Compatible with IEEE 802.11b/g/n wireless standards
• Built-in 3,069 local accounts and 3,069 on-demand
accounts
• Comprehensive access control and user management
• Supports for location-based hotspot services and
customizable UAM web pages
• Simple generation of user accounts with built-in online
payment such as credit card or PayPal
• Powerful network security capabilities for enterprise
applications
• Simplified deployment and reliable Internet connection
• Supports IP Plug and Play (IP PnP) for instant network
connectivity
- Overview
- Specification
The WHG-1000 is the most economical yet feature-rich Wireless Hotspot Gateway, targeting mini-size
stores who want to provide small, single-point wireless Internet access service. WHG-1000 is a perfect
choice for beginners to run hotspot businesses. It does not cost a fortune to buy a pile of equipment,
nor does it take the skills of an expert to glue multiple applications out of multiple freeware. Featurepacked for hotspot operation, WHG-1000 comes with built-in 802.11n/b/g access point, web server
and web pages for clients to login, easy logo-loading for branding a hotspot store, simple
user/visitor account management tool, payment plans, PayPal credit card gateway, traffic logs,
IP sharing and etc.
CPU | 400 MHz, AR7240+AR9283 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flash | 16Mbytes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDRAM | 64 Mbytes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface | ■ Metal case compliant with IP50 Standard
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual WAN |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | 100~240VAC, 50~60 Hz, DC 12V/1A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions (W x D x H mm) | 204 x 134 x35 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight (g) | 610g | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperature (°C) | Operating: -20 ~ 50 °C
Storage: -20 ~ 60 °C |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Humidity (Non-condensing) | Operation: 10%~80
Storage: 5%~90 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Approval | CE, FCC, RoHS compliant | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | ■ Support NAT or Router Mode
■ Support static IP , Dynamic IP(DHCP Client ), PPPoE and PPTP on WAN connection ■ DHCP Server Per VLAN; Multiple DHCP Networks ■ 802.3 Bridging ■ Proxy DNS/Dynamic DNS ■ NAT: – IP/Port destination redirection – DMZ server mapping – Virtual server mapping – H.323 pass-through ■ Built-in with DHCP server ■ Support Static Routing ■ NTP Client ■ Vitual DMZ ■ Virtual Server (IP /Port Forwarding) ■ Binding VLAN with Ethernet and Wireless interface – The network is divided into maximum 8 group, each defined by a pair of VLAN tag and ESSID Each Domain has its own (1) login portal page (2) authentication options (3) LAN interface IP address range – Each Domain allows access to the selected groups and assigns a network policy to each user group – Support VLAN Tag over WDS ■ PPTP, IPSec Pass-through ■ Support MAC and IP Filter ■ Support Walled garden (free surfing zone) ■ Support MAC-address and IP –address pass through ■ Support configurable static routes ■ Support SIP pass-throughput NAT ■ Support IP Plug and Play (IP PnP )
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Security
|
■ Layer 2 User and AP Isolation
■ Blocks client to client discovery within a specified VLAN ■ Setting for TKIP/CCMP/AES key’s refreshing periodically ■ Hidden ESSID support ■ Setting for “ Deny Any “ connection request ■ MAC Address Filtering (MAC ACL) ■ Support Data Encryption : WEP(64/128-bit), WAP, WAP2 ■ Support various authentication methods : WPA-PSK, WPA-RADIUS, IEEE802.1X ■ Support VPN pass-thourghput
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User Management
|
■ Suggest 100 simultaneous authentication users
■ Max 3069 Accounts ■ Support Pre-generated Users, On-Demand Users and Local Radius Accounts. ■ Users Session Management ■ Configurable user Black list ( with Time-based control) ■ Allows MAC address and user identity binding for local user authentication ■ SSL protected login portal page ■ Supports multiple login with one single account ■ Session idle timer ■ Login Session idle time out setting ■ Session and account expiration control ■ Notification email to provide a hyperlink to login portal page ■ User Log and traffic statistic notification via automatically email service ■ Login time frame control ■ Session limit ■ Real-Time Online Users Traffic Statistic Reporting ■ Support local account roaming ■ Seamless Mobility : User-centric networking manages wired and wireless users as they roam between ports or wireless AP Monitoring and Reporting |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System Administration
|
■ Intuitive Web Management Interface
■ Three administrator accounts ■ Provide customizable login and logout portal page ■ CLI access (Remote Management) via Telnet and SSH ■ Remote firmware upgrade (via Web) ■ Utilities to backup and restore the system configuration ■ Remote Link Test – Display connect statistics ■ Full Statistics and Status Reporting ■ Real time traffic monitor ■ Ping Watchdog ■ Even Syslog ■ Remote Syslog reporting to external server ■ SNMP v1, v2c,v3 ■ SNMP Traps to a list of IP Address ■ Support MIB-II ■ Support Static Routing ■ Spanning Tree Protocol ■ NTP Time Synchronization ■ Administrative Access : HTTP / HTTPS
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Accounting
|
■ Provides billing plans for pre-setting accounts
■ Provides billing plans for on-demand accounts ■ Enables session expiration control for On-demand accounts by time(Hours) Detailed per-user traffic history based on time and data volume for both local and on-demand accounts ■ Support local on-demand and external RADIUS server ■ Contain 10 configurable billing plans for on-demand accounts ■ Support credit card billing system by Authorize.net and Papal ■ Provide session expiration control for on-demand accounts ■ Support automatic email network traffic history
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless
|
■ Transmission power control : 7 Levels
■ Channel selection : Manual or Auto ■ No. of associated clients per AP : 32 ■ Setting for max no associated clients : Yes ■ No. of BBSID (Virtual AP) : 8 ■ No. of Max. WDS setting : 4 ■ Preamble setting : Short / Long ■ Setting for 802.11b/g/n mix, 802.11b only or 802.11 b/g only or 802.11n only ■ Setting fortransmission speed ■ IEEE802.11f IAPP ( Inter Access Point Protocol ), hand over users to another AP ■ IEEE802.11i Preauth (PMSKA Cache) ■ IEEE802.11d Multi country roaming ■ Automatic channel assignment ■ Coordinated Access ensures optimal performance of nearby AP on the same channel ■ Secure wireless bridge connects access points without wire ■ Monitoring and reporting ■ IP-Based monitoring of network devices ■ Uplink(WAN) connection failure alert ■ Support Syslog for diagnosis and troubleshooting by email ■ Traffic history report via email to administrator ■ Users’ session log can be sent by email or Syslog server
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Authentication
|
■ Authentication: single sign-on (SSO) client with authentication integrated into the local authentication environment through local/domain, LDAP, RADIUS, MAC authentication, and 802.1x
– Customizable Login and Logout Portal Pages – Customizable Advertisement Links on Login Portal Page ■ User authentication with UAM (Universal Access Method), 802.1x /EAPoLAN ,MAC address ■ No. Of Registered RADIUS Servers : 2 ■ Support MAC control list (ACL ) ■ Support auto-expierd guest accounts ■ Users can be divided into user groups ■ Each user group has its own network properties, including bandwidth, QoS, WMM traffic ■ Each group (role) get different network policies in different service domain ■ Max simulanous user session (TCP/UDP) limit ■ Configurable user black list ■ Export/Import local users list to/from a text file ■ Web-based Captive Portal for SSL bowered-based authentication ■ Authentication Type – IEEE802.1X(EAP,LEAP,EAP-TLS,EAP-TTLS,EAP-GTC,EAP-MD5) – RFC2865 RADIUS Authentication – RFC3579 RADIUS Support for EAP – RFC3748 Extensible Authentication Protocol – MAC Address authentication Web-based captive portal authentication |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Authorization
|
■ Authorization : access control to network resource such as protected network with intranet, internet, bandwidth, VPN,
and full stateful packet firewall rule sets |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QoS Enforcement
|
■ Packet classification via DSCP (Differentiated Services code Point )
■ Traffic Analysis and Statistics ■ Diff/TOS ■ IEEE 802.1Q Tag VLAN priority control ■ IEEE 802.11e WMM ■ Automatic mapping of WMM priorities to 802.1p and IP DSCP ■ U-APSD(Unscheduled Automatic Power Save Delivery) ■ IGMP Snooping for efficient multicast delivery ■ Upload and Download Traffic Management ■ Support WMM Multiple Priority Level ■ Scheduled Policies
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Firewall
|
■ Built-in DoS attack protection
■ Inspection Full statefull packet filter ■ Access Control List ■ Multiple Domain Support
|
