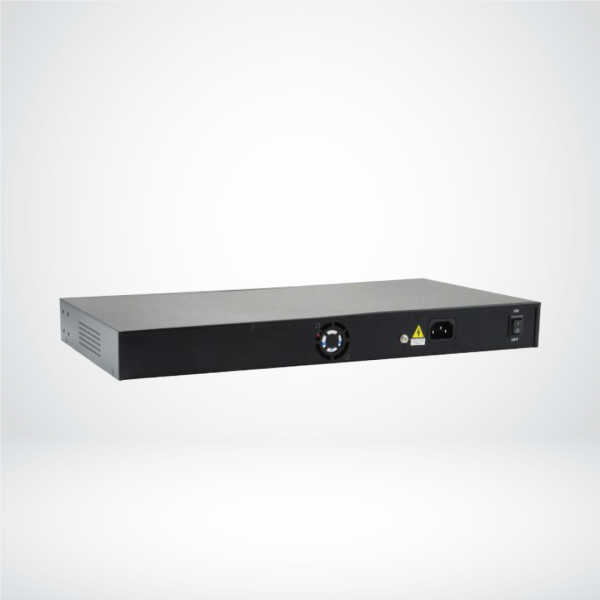

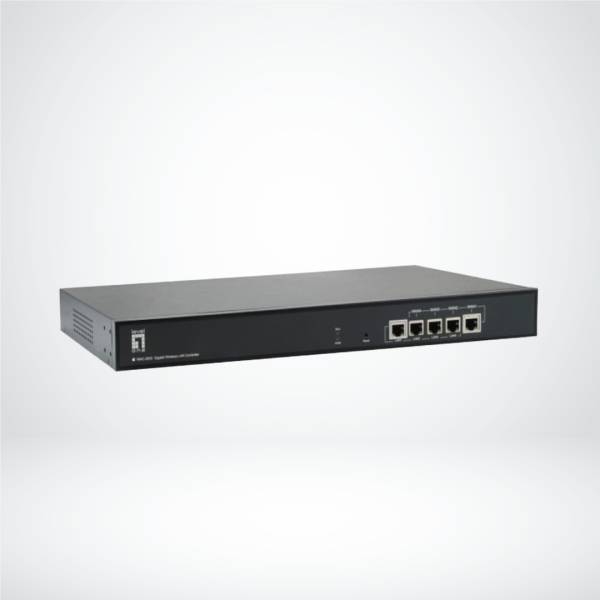

Gigabit Wireless LAN Controller WAC-2003

• Centralized management of up to 300 APs

• Up to 4 WAN interfaces with load balancing function

• Client isolation allows strict control of access to wireless devices on the network

• Supports gateway/router mode

• Load balancing across multiple APs

• Built-in robust firewall to protect Internet access against intruders

• Captive Portal function provides a convenient method of authentication for guest users

Compare Compare

The LevelOne WAC-2003 is a Gigabit WLAN Controller designed for small-to-medium sized networks such as SMBs, schools, boutique hotels and apartments. Centralized management of up to 300 APs offers complete wireless security and service solutions for any mid-range wireless network.The WAC-2003 controller can also be a multi-WAN Internet gateway with robust firewall to protect Internet access against intruders, 1 WAN, and 3 WAN/LAN and 1 LAN ports in Gigabit speeds allow for fast and reliable distribution of data throughout the network. Up to 4 WAN interfaces with load balancing function satisfy needs of always-on Internet connection with greater bandwidth.The WAC-2003 integrates a wide variety of functions, the administrator can easily build up AP’s configuration including tag-based VLAN settings, upgrade the AP’s firmware and monitor AP on/off status, numbers of connected AP and users. Captive portal function provides a convenient way of authentication for guest users.The LevelOne WAC-2003 also supports real-time control to access point RF scanning for signal strength and interference information. According to the results, WAC-2003 will adjust traffic loading, output power, RF coverage and channel distribution of the APs to optimize wireless coverage and throughput.


Approval and compliance CE
FCC Part 15 Subpart B
RoHS Directive 2011/65/EU
Compatibility Able to manage LEVELONE Wireless Access Point
WAB-5010/ WAB-6010/ WAB-8011/ WAP-6017/ WAP-6117/ WAP-6121/
WAP-6221/ WAP-8021/ WAP-8121/ WAP-8122/ WAP-8123/ WAP-8221
Max. operating humidity (%) 90
Max. operating temperature (°C) 50
Max. storage humidity (%) 90
Max. storage temperature (°C) 70
Min. operating humidity (%) 10
Min. operating temperature (°C) -10
Min. storage humidity (%) 5
Min. storage temperature (°C) -40
Indicators Power
RAM size 256MB
Flash memory size 16MB
Power supply AC power
Standards IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
Features Support AP Management, up to 300 Aps
Support AP Disable, Restart and Reset
Support AP Configuration Models Auto-loading
Support AP Layer 2 Roaming
Auto-cross-IP detection and Distribution to avoid AP’s IP conflict in the whole networking.
Support smart QoS and firewall functions under gateway operation mode to protect the whole networking safty.
Product weight (kg) 2,5
Product breadth (mm) 240
Product depth (mm) 440
Product height (mm) 44
Color Black
EAN 4015867202012
Model number WAC-2003
Package contents WAC-2003
19″ Einbaurahmen
Ressource CD (Bedienungsanleitung, QIG)
Quick Installation Guide
Gigabit RJ45 5
