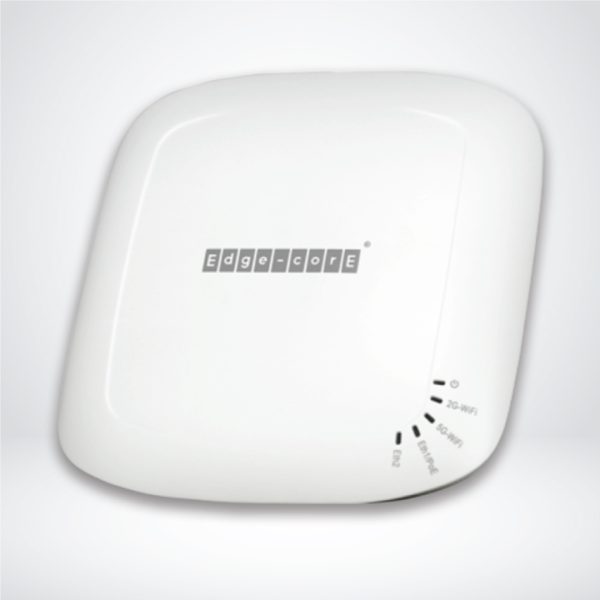

Controller Based 11Ac Dual Band,Wave 1,3X3 MIMO Indoor AP – ECW5211-L

Edgecore ECW5211-L is an enterprise-grade, concurrent dual-band 802.11ac wave 2 indoor access point, designed specifically for high-density environments such as offices, universities, hotels, and hospitals.

Compare Compare

ECW5211-L is an enterprise-grade, concurrent dual-band 802.11ac Wave 2 indoor access point, designed specifically for high-density Wi-Fi environments. The ECW5211-L features two 2×2:2 MU-MIMO radios that can each transmit data to multiple clients simultaneously, and together have a combined data rate of up to 1.2 Gbps. Besides, the ECW5211-L’s integrated Bluetooth Low Energy (BLE) radio also enables new value-added applications such as indoor location tracking, iBeacon, and other location-based services.

When used with an Edgecore controller, additional value-added applications such as bandwidth control, user authentication, and captive portals can be used to provide an ideal solution for all types of businesses. In addition, one AP can be associated to two controllers for redundancy purpose.

• RADIO

○ 11 a/b/g/n/ac ; Wave 2

○ Concurrent Dual-band 2.4 / 5 GHz

○ Radio Chains: 2 x 2 : 2

○ RF Output Power*1: 2.4 GHz: Up to 21 dBm*2; 5 GHz: Up to 20 dBm*2
(*1: RF output power aggregates across MIMO chains and doesn’t contain antenna gain; *2: Maximum power is limited by local regulatory requirements)

○ Frequency Band: 2.412 – 2.472 GHz, 5.180 – 5.825 GHz

○ Channelization: 20 MHz, 40 MHz, 80 MHz

○ Up to 16 ESSIDs per radio (32 total)

• QUALITY OF SERVICE

○ Wireless QoS (802.11e / WMM)

○ DSCP (802.1p)

○ Airtime Fairness

○ Band Steering

○ Multicast to Unicast Conversion

○ Optimal Client Filtering

• PHYSICAL DIMENSIONS

○ 7 cm x 14.7 cm x 3.5 cm (W x D x H)

○ Weight: 0.36 g (0.78 lbs)

○ Mounting: Wall/Ceiling mount (Mounting kit included)

• INTERFACES

○ Uplink: 1 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45 with 802.3af PoE

○ LAN: 1 x 10/100/1000Base-T Ethernet, Auto MDIX, RJ-45

○ USB: 1 x USB 2.0 Port

• ANTENNA

○ Type: 3 x Built-in PIFA (2 x 2.4 GHz, 5 GHz, 1 x Bluetooth Low Energy)

○ Gain: 3 dBi (2.4 GHz), 5 dBi (5 GHz), 3 dBi (BLE)

• ENVIRONMENTAL CONDITIONS

○ Operating Temperature: 0°C (32°F) to 50°C (122°F)

○ Operating Humidity: 5% to 95% non-condensing

• PERFORMANCE

○ Up to 300 Mbps (2.4 GHz)

○ Up to 867 Mbps (5 GHz)

○ Up to 256 Concurrent Users (128 on 2.4 GHz, 128 on 5 GHz)

• MOBILITY / ROAMING

○ Layer 2 / Layer 3 Fast Roaming

○ Hotspot 2.0

• SECURITY

○ Wireless Security: WEP, WPA / WPA2 Mixed, WPA2-Personal, WPA2-Enterprise (802.1X), TKIP and AES Encryption

○ VLAN Tagging (802.1Q)

○ Station Isolation

○ DHCP Snooping

○ Layer 2 Firewall

• MANAGEMENT

○ Deployment: Standalone, Tunneled management by Edgecore EWS Gateway-Controller, IPv4 & IPv6 compatible, LLDP

○ Configuration: Web User Interface (HTTP / HTTPS), SNMP v1, v2c, v3

• POWER

○ DC Input: 12V / 1.0A

○ PoE: 802.3af compliant (PoE injector optional)

○ Power Consumption: 11W max.

• LED INDICATORS

○ Power / 2.4G-WiFi / 5G-WiFi / Eth1 / Eth2

• CERTIFICATIONS

○ FCC (United States)

○ CE (Europe)

hotspot-billing-icon

Enterprise-grade AP Functionality

○ Up to 16 ESSIDs per Radio

○ Configurable Connectivity Thresholds

○ Dynamic Channel Selection

○ Seamless/Fast Roaming

○ Band Steering

○ Airtime Fairness

○ Multicast to Unicast Conversion

○ 802.11e/WMM

○ 802.11u/Hotspot 2.0

○ 802.1p/DSCP

complete-user-management

Advanced Wi-Fi Security

○ WPA2-Enterprise with 802.1X Authentication

○ 802.1Q VLAN Tagging

○ Layer 2 Firewall

○ Station Isolation

○ MAC ACL

○ DHCP Snooping

○ WPA/WPA2 Security with AES Encryption

○ Detailed User Connectivity Statistics

○ Configurable Trusted Wireless Interfaces

○ Secure AP Mounting Mechanisms
