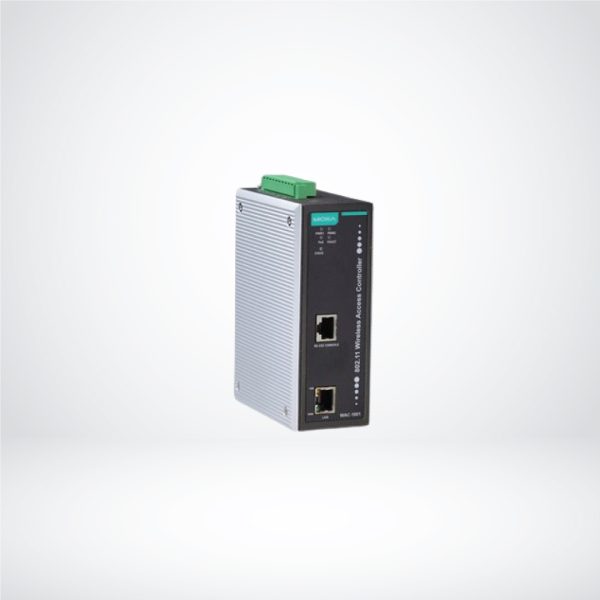

Gigabit Wireless LAN Controller – WAC1001
• Comply with IEEE802.3 Ethernet, IEEE802. 3u Fast Ethernet, IEEE802.3 standards
• Each physical port supports automated negotiation function
• Each physical port supports MDI/MDI – X adaptive switch – adapter mode
• Provide status indicators
• Working environment: Temperature: 0~40℃
• Height: 0~4000m
• Relative humidity: 10%~90%, no condensation
- Overview
- Specification
• Automatically find and associate the LevelOne wireless AP, without the need to do any configuration of AP, to achieve the centralized management of AP
• Support real-time monitoring the AP status, automatically detect the AP for working correctly, and display the status information of each AP in the admin interface
• Support the DHCP server functions
• Be able to configure related properties such as wireless parameters
• Support the backup and import of WEB configuration files
• Support HTTP remote management
• UPLINK port can provide professional lightning protection chip
• Added the 2.4GHz/5GHz RF template, to be in line with the IEEE802.11a/b/g/n protocol standard, be able to support the 802.11AC protocol, and provide the wireless transmission rate up to 867 Mbps
• Only support 802.11 g, 802.11 n, 802.11 g/n, 802.11 b/g/n; only 802.11 a, 802.11 a/n mixed, 802.11 vhtAC/AN/a mixed, 802.11 vhtAC/AN mixed and other wireless modes
• Support wireless security mechanism control, and provide WEP, WPA Enterprise, WPA2-Enterprise, WPA-PSK, WPA2-PSK and a variety of wireless security mechanisms
• Support the SSID broadcasting control, to effectively prevent SSID broadcasting leaks
• Support the Wi-Fi Multimedia (WMM) function
• Support the wireless MAC address filtering function, with configurable blacklists
• WEB configuration interface, an easy and quick wizard
• Support the WEB upgrading mode, convenient for function extension
| Input/Output Interface
|
|
| Alarm Contact Channels
|
1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Ethernet Interface
|
|
| 10/100/1000BaseT(X) Ports (RJ45 connector) | 1
|
| Standards
|
IEEE 802.1X for authentication IEEE 802.3 for 10BaseT IEEE 802.3ab for 1000BaseT(X) IEEE 802.3af for PoE IEEE 802.3u for 100BaseT(X) |
| Total Port Count
|
1 |
| Highest Speed
|
1G |
| Connections
|
PoE |
| Ethernet Software Features
|
|
| Management | IPv4, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, TFTP, Web Console, Wireless Search Utility
|
| Security | HTTPS/SSL, RADIUS, SSH
|
| Time Management
|
NTP Client, SNTP
|
| Serial Interface
|
|
| Console Port
|
RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
|
| Flow Control
|
RTS/CTS, XON/XOFF
|
| Parity
|
None, Even, Odd, Space, Mark
|
| Serial Signals
|
|
| RS-232
|
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
|
| Wireless Access Control
|
|
| Controller Failover Mode
|
1-on-1 hot backup
|
| Handover Time
|
50 ms
|
| WLAN Products Supported | 110 radios
|
| Power Parameters | |
| Input Current
|
0.6 A @ 12 VDC, 0.15 A @ 48 VDC
|
| Input Voltage | 12 to 48 VDC, Redundant dual inputs
|
| Source of Input Power
|
PoE (IEEE 802.3af)
|
| Physical Characteristics
|
|
| Housing
|
Metal
|
| IP Rating
|
IP30
|
| Dimensions (without ears)
|
52.85 x 135 x 105 mm (2.08 x 5.32 x 4.13 in)
|
| Weight
|
1,060 g (2.34 lb)
|
| Installation
|
DIN-rail mounting, Wall mounting (with optional kit)
|
| Environmental Limits
|
|
| Operating Temperature
|
Standard Models: -10 to 60°C (14 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature (package included) | -40 to 85°C (-40 to 185°F)
|
| Ambient Relative Humidity | 5 to 95% (non-condensing)
|
| Standards and Certifications
|
|
| EMC
|
EN 55032/24
|
| EMI
|
CISPR 32, FCC Part 15B Class A
|
| EMS
|
IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF |
| Railway | EN 50121-4, EN 50155 |
| Safety
|
EN 60950-1, IEC 60950-1, UL 60950-1 |
| Declaration
|
|
| Green Product
|
RoHS, CRoHS, WEEE
|
| MTBF
|
|
| Time | 447,425 hrs
|
| Standards
|
Telcordia SR332 |
