802.11AC Dual Band High Power & Wave-2 PoE Ceiling AP/Router (8 SSID) – WAP-8123
• Compatible with IEEE 802.11a/b/g/n/ac Wave 2 wireless standards
• MU-MIMO technology greatly enhances WLAN performance for all clients
• Provides wireless speeds of up to 300Mbps (2.4GHz) / 867Mbps (5GHz)
• Dual power support: 12V DC/PoE (IEEE 802.3at)
• Multi-operation modes to suit different wireless applications
• Auto Channel Selection for low interference band
• Provides up to 8 SSIDs to separate network traffic and enhance security
• High power and receiver sensitivity designed to boost your signal coverage and link speed
- Overview
- Specification
LevelOne’s WAP-8123 is a managed, dual-band wireless access point, Supply 802.11ac Wave 2 MU-MIMO (Multi-User Multiple-Input Multiple-Output), allows multiple devices to get high- bandwidth Wi-Fi signal at the same time, distributing data more efficiently. capable of a combined speed of up to 1200 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAP-8123 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.
| Approval and compliance | CE, RoHS |
|---|---|
| Operating humidity | 10% RH ~ 90% RH |
| Operating temperature | -30°C ~ 55°C |
| Storage humidity | 5% RH ~ 90% RH |
| Storage temperature | -40°C ~ 70°C |
| Antenna | 2x 2.4 GHz Build in 5dBi MIMO Antenna 2x 5.8 GHz Build in 5dBi MIMO Antenna |
| EIRP (dBm) | <20 dBm |
| Encryption | WEP 64/128-bit Web share key encryption WPA, WPA2 128-bit TKIP/AES encryption WPA, WPA2-PSK TKIP/AES encryption |
| Frequency band | 2.4 ~ 2.4835 GHz 5.15 ~ 5.35 GHz 5.46 ~ 5.72 GHz 5.725~ 5.825 GHz |

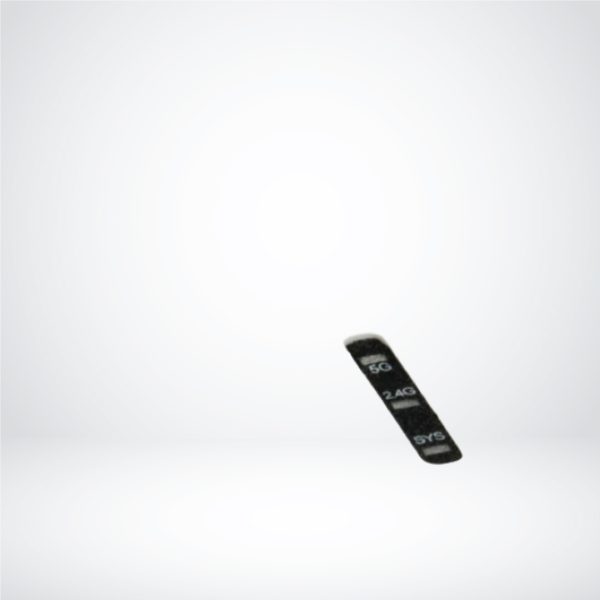

| Indicators | Power, System status |
| RAM size | 128MB (DDR2) |
| Flash memory size | 16MB |

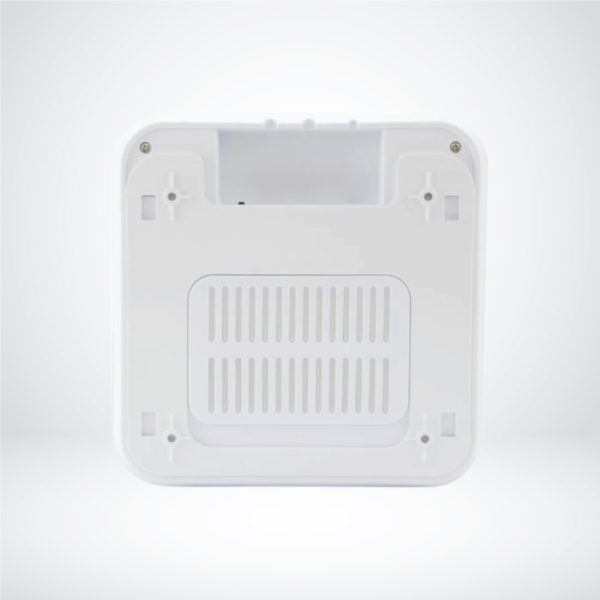

| Mount | Ceiling mount |
| Operating modes | Gateway Mode, Repeater Mode, AP Mode, WISP Mode |
| Power supply | Power adapter (ordered separately) |
| Standards | IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.11e Wi-Fi Multimedia (WMM) IEEE 802.3x Ethernet Flow Control IEEE 802.11i Wi-Fi Protected Access (WPA2) IEEE 802.11a/b/g/n/ac IEEE 802.11ac Wave 2 MU-MIMO IEEE 802.3at Power over Ethernet IEEE 802.3az |
| Wireless channels | 2.4 GHz : Ch.1 ~ 11 USA Ch.1 ~ 13 EU 5.8 GHz : Ch.36~64 , 100~128 , 132~140 , 149~165 USA Ch.36~64 , 100~128 , 132~140 EU |
| Features | Multi-SSID: 8 SSIDs (2.4GHz*4 SSIDs + 5.8GHz*4 SSIDs) |
| Product weight (kg) | 0,52 |
| Color | White |
| EAN | 4015867206652 |
| Model Number | WAP-8123 |
| Package contents | WAP-8123 Schraubenset RJ45-Ethernet-Kabel Quick Installation Guide Ressource CD (Bedienungsanleitung, QIG) |

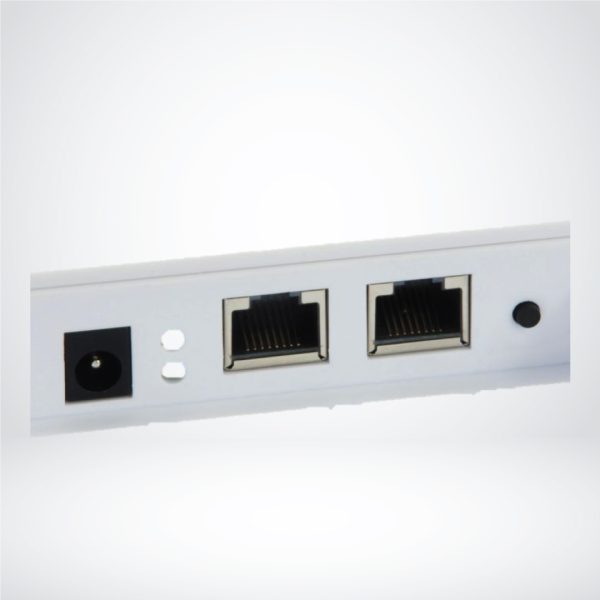

| Gigabit RJ45 | 2 |
| 802.3af/at PoE | 1 |
| Receiver sensitivity | 2.4 GHz Radio :
802.11b / 1Mbps / RX Sensitivity : -94 (dBm) 802.11b / 11Mbps / RX Sensitivity : -85 (dBm) 802.11g / 6Mbps / RX Sensitivity : -90 (dBm) 802.11g / 54Mbps / RX Sensitivity : -72 (dBm) 802.11n HT20 / MCS0 / RX Sensitivity : -88 (dBm) 802.11n HT20 / MCS7 / RX Sensitivity : -70 (dBm) 802.11n HT40 / MCS0 / RX Sensitivity : -86 (dBm) 802.11n HT40 / MCS7 / RX Sensitivity : -68 (dBm) 5.8 GHz Radio : 802.11a HT20 / 6Mbps/ RX Sensitivity : -90 (dBm) 802.11a HT20 / 54Mbps/ RX Sensitivity : -72 (dBm) 802.11n HT20 / MCS0 / RX Sensitivity : -88 (dBm) 802.11n HT20 / MCS7 / RX Sensitivity : -70 (dBm) 802.11n HT40 / MCS0 / RX Sensitivity : -86 (dBm) 802.11n HT40 / MCS7 / RX Sensitivity : -68 (dBm) 802.11ac VHT80 / MCS0 / RX Sensitivity : -85 (dBm) 802.11ac VHT80 / MCS9 / RX Sensitivity : -58 (dBm) |
| Frequency band | 2.4/5GHz(Dual bands) |
| Max. Wi-Fi Data Rate | 1200Mbps |
| Wireless AP Type | Ceiling |
| PoE Supported | Yes |
| Power consumption | 16.8W |
