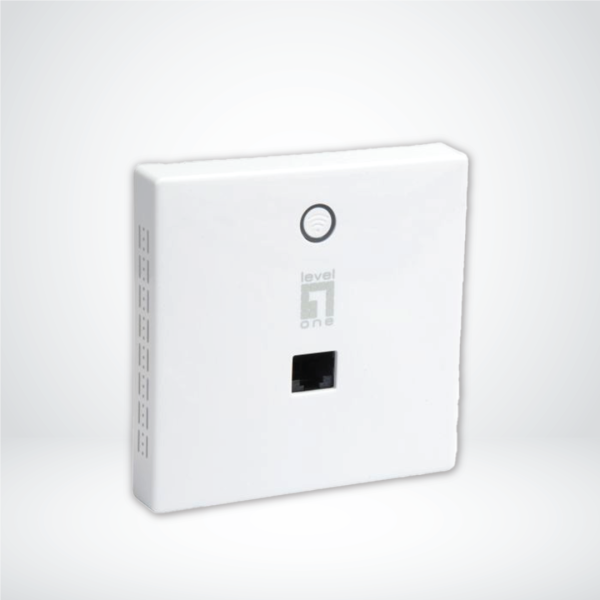

802.11AC Dual Band High Power & Wave-2 PoEIn-Wall AP/Router (8 SSID) WAP-8221

• Share your wireless network up to 750Mbps

• Compatible with IEEE 802.11a/b/g/n/ac wireless standards

• Dual band technology reduces interference, providing reliable connections

• IEEE 802.3af PoE compliant to simplify deployment and installation

• Multi-operation modes to suit different wireless applications

• Provides up to 8 SSIDs to separate network traffic and enhance security

• Wall-mounted design fits standard 86x86mm socket

Compare

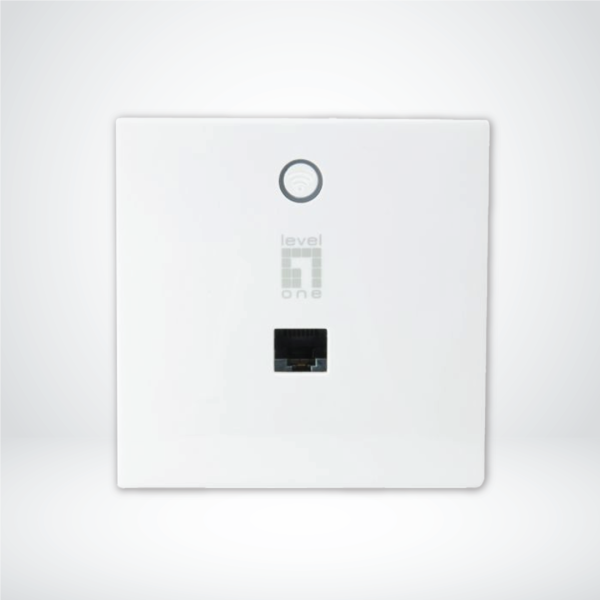

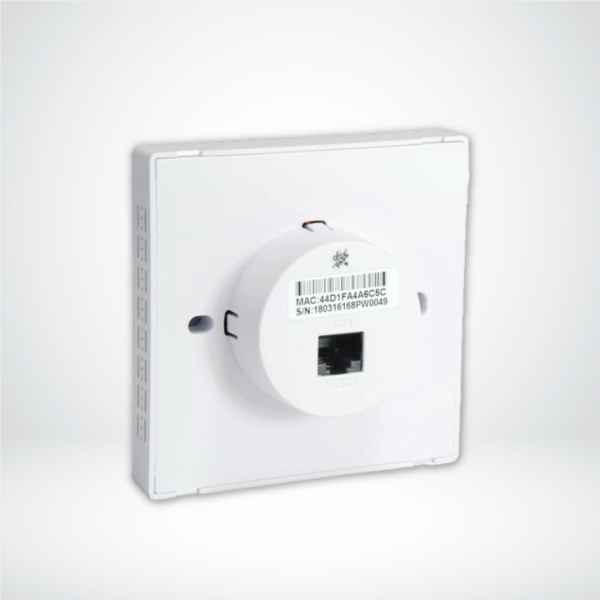

The LevelOne new access point, the WAP-8221, can be used to create wireless networks that are not only technically perfect but also visually perfect. Since there is almost not to see with the wireless access point hardware: The wireless access point – just like a power outlet – is simply mounted on the wall. hotels and guesthouses can carefully set up WLANs for guests in each room. It can achieve a combined speed of up to 750 Mbps. The WAP-8221 operates in the 2.4 and 5 GHz bands and can also be used as part of a managed network when controlled by the LevelOne WAC-2000 / WAC-2003 WLAN controller. There is an RJ45 socket for the network cable on the back and front. LevelOne WAP-8221 also offers PoE, removing the need for an external power supply, which makes it easy to install. A fast, versatile and secure access point for a wide variety of network requirements.

Approval and compliance CE, RoHS
Max. operating humidity (%) 90
Max. operating temperature (°C) 50
Max. storage humidity (%) 90
Max. storage temperature (°C) 70
Min. operating humidity (%) 10
Min. operating temperature (°C) -20
Min. storage humidity (%) 5
Min. storage temperature (°C) -40
Antenna 1 x 2 dBi internal antenna (5 GHz), 2 x 2 dBi internal antenna (2.4 GHz)
EIRP (dBm) 12.67 dBm
Encryption WEP (64/128 bit), WPA Personal (AES), WPA2 Personal (AES)
Frequency band 2.412 to 2.483 GHz, 5.18GHz to 5.825GHz
Indicators • WIFI status
RAM size 64 MB
Flash memory size 16 MB
Mount Flush mount, Wall mount
Operating modes Gateway Mode, Repeater Mode, AP Mode, WISP Mode
Chipset Qualcomm QCA9531
Standards • IEEE 802.3 10-BASE-T, Ethernet
• IEEE 802.3u 100-BASE-TX, Fast Ethernet
• IEEE 802.11e Wi-Fi Multimedia (WMM)
• IEEE 802.11i Wi-Fi Protected Access (WPA2)
• IEEE 802.11a/b/g/n/ac
• IEEE 802.3af Power over Ethernet
Wireless channels ● 2.412 to 2.483 GHz: CH 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 ● 5.18GHz to 5.825GHz : CH 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 116, 120, 124, 128, 132, 140, 149, 153, 157, 161, 165
Features • Web-Based GUI Configuration
• Multiple SSID (4 SSID for 2.4GHz, 4 SSID for 5GHz)
Product weight (kg) 0.099
Product breadth (mm) 86
Product depth (mm) 31
Product height (mm) 86
Color White
EAN 4015867206539
Model number WAP-8221
Package contents • WAP-8221
• Screw Kit
• Quick Installation Guide
• Resource CD (User Manual, QIG)
Fast Ethernet RJ45 2
802.3af PoE 1
Receiver sensitivity 2.4 GHz Receive Sensitivity:
802.11b / 1Mbps / RX Sensitivity : -94 (dBm)
802.11b / 11Mbps / RX Sensitivity : -85 (dBm)
802.11g / 6Mbps / RX Sensitivity : -88 (dBm)
802.11g / 54Mbps / RX Sensitivity : -72 (dBm)
802.11n HT20 / MCS0 / RX Sensitivity : -88 (dBm)
802.11n HT20 / MCS7 / RX Sensitivity : -70 (dBm)5.8 GHz Receive Sensitivity:
802.11a HT20 / 6Mbps/ RX Sensitivity : -90 (dBm)
802.11a HT20 / 54Mbps/ RX Sensitivity : -72 (dBm)
802.11n HT20 / MCS0 / RX Sensitivity : -90 (dBm)
802.11n HT20 / MCS7 / RX Sensitivity : -70 (dBm)
802.11ac VHT80 / MCS0 / RX Sensitivity : -86 (dBm)
802.11ac VHT80 / MCS9 / RX Sensitivity : -60 (dBm)
Frequency band 2.4/5GHz(Dual bands)
Max. Wi-Fi Data Rate 750Mbps
Wireless AP Type Inwall
PoE Supported Yes
Power consumption <10W
