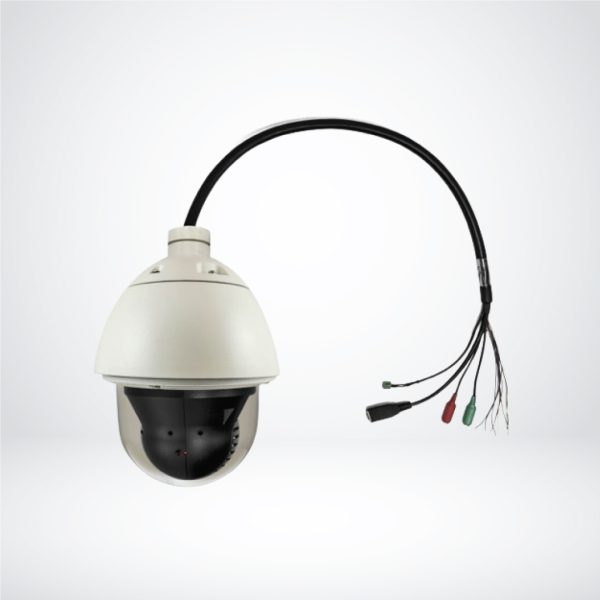

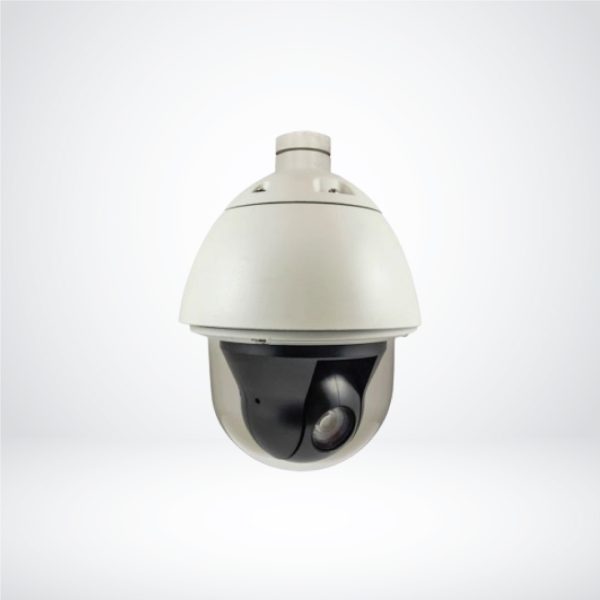

30X Optical Zoom Outdoor PTZ Camera (without Mounting Kit) – FCS-4042
• 2-Megapixel (1920 x 1080) high-definition resolution
• Built-in Micro SDHC/SDXC card slot for local storage
• Dual power support: 24V AC/PoE (IEEE 802.3at)
• 3D privacy masks for private area protection
• Weatherproof IP67-rated housing
• Supports 30X optical zoom
• Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
• Free surveillance and CMS (Central Management System) software packages with 64-channel license
• 360° pan and 190° tilt movements allow for a wide range of monitoring angles
• Removable IR-cut filter for day and night surveillance
- Overview
- Specification
The LevelOne FCS-4042 is a outdoor PTZ IP surveillance camera with 2 megapixel resolution and 30X optical zoom. In addition, the camera provides a motorized pan and tilt function, allowing it to focus in a variety of directions and magnify a particular viewing area. In addition, the camera supports PoE, enabling power and data transmission over a single Cat.5 cable, making deployment easy and efficient. An IP67 rated weatherproof enclosure allows for safe, reliable outdoor operation and withstands rain, heat, snow, dust and moisture.
| Approval and compliance | CE, RoHS, FCC, ONVIF, IP67, IK09, NEMA 4X,UL |
| Supported browsers | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Operating temperature | 0°C ~ 40°C |
| Storage temperature | 10°C ~ 85°C |
| Angle of View (°) | 66.4 – 2.61 |
| Audio format | G.711 |
| Image sensor | 2-Megapixel 1/2.8″ Progressive Scan CMOS |
| Indicators | Power |
| IR cut filter | Yes |
| Lens | Zoom, DC iris, Auto focus, f4.3-129mm, F1.6-5.0 |
| Minimum illumination (lux) | Color: 0.1 lux at F1.6 B/W: 0.05 lux at F1.6 |
| Mount | Wall mount |
| Optical zoom | 30 X |
| Pan (Swivel) range | Pan range: 360° |
| Power supply | High PoE (IEEE802.3at) / 25.44 W (built-in heater and fan on), AC 24V / 31.5 W (built-in heater and fan on) |
| Resolution | 2M (1920×1080) |
| Shutter time | NTSC: 1/15 ~ 1/32,000 sec PAL: 1/13 ~ 1/32,000 sec |
| Storage capacity | SD/MicroSD memory card of up to 64GB |
| Standards | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour, 802.1x |
| Tilt range | Tilt range: -20° ~ 200° |
| Video format | H.264 / MJPEG |
| Weatherproof rating | IP-67 |
| Features | Backup: MicroSDHC /MicroSDXC card slot for local storage |
| Product weight (kg) | 2,75 |
| Color | White |
| EAN | 4015867189931 |
| Model Number | FCS-4042 |
| Package contents | FCS-4042 Power Adapter Power Cord Screw Kit Quick Installation Guide Resource CD (User Manual, QIG) |
| Fast Ethernet RJ45 | PoE 802.3at |
| Terminal block | I/O terminal block (4 DI/2 DO) |
| Camera Type | Speed Dome |
| Resistance | Weatherproof, Vandalproof |
| Zoom Type | Motorization |
| PoE Supported | Yes |
| Max. Resolution | 2 Megapixels |
| IP Camera series | HUBBLE |
| Power consumption | High PoE (IEEE802.3at) / 25.44 W (built-in heater and fan on), AC 24V / 31.5 W (built-in heater and fan on) |
| Dimensions (W x D x H) | 191 x 191 x 282 mm |
