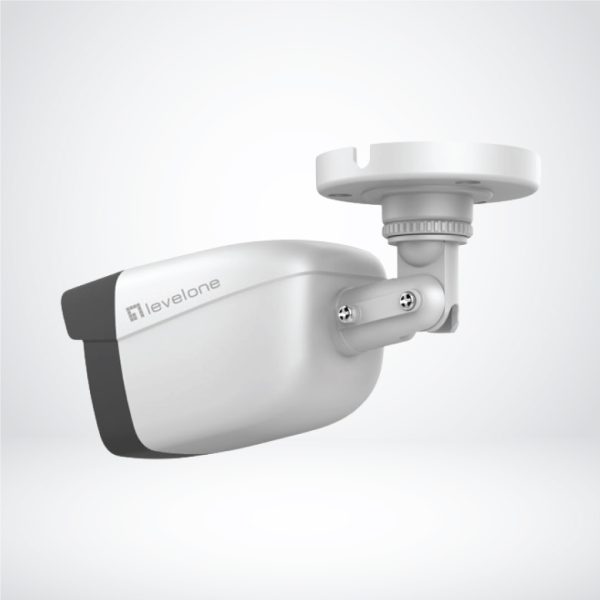

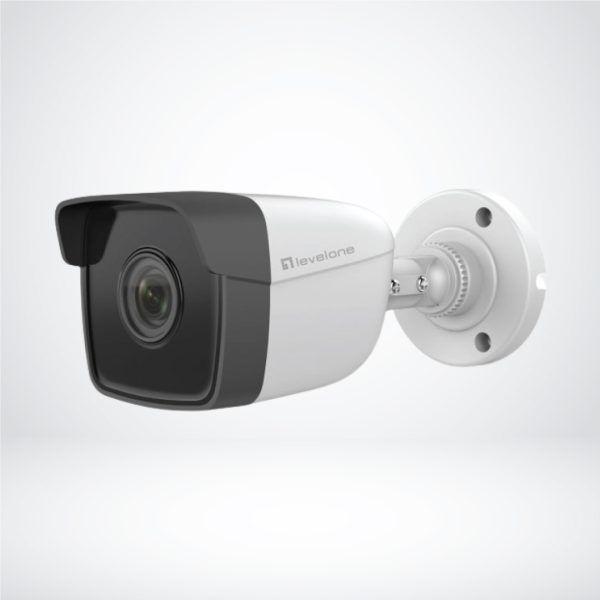

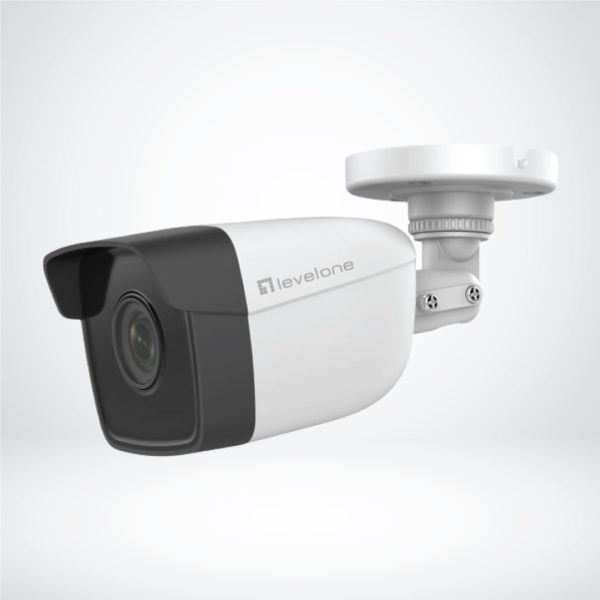

Day & Night Outdoor IP67 PoE Bullet H.265 IP Camera – FCS-5201

• Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments

• Built-in infrared LEDs for night viewing up to 30m

• Removable IR-cut filter for day and night surveillance

• 2-Megapixel (1920 x 1080) high-definition resolution

• Built-in infrared LEDs for night viewing up to 30m

• Video compression: H.264, H.265, MJPEG

• Supports IPv4/IPv6 network operation

Compare Compare

The LevelOne FCS-5201 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solutionfor outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dustand humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5201 shouldbe an essential part of any security deployment that requires smart, reliable outdoor cameras.

Approval and compliance CE/FCC,IP67
TVS 2000V lightning protection, surge protection and voltage transient protection
Supported browsers IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
Operating humidity 0% RH ~ 95% RH
Operating temperature -30°C ~ 50°C
Angle of View (°) 83.6
Digital zoom 8x
Image sensor 1/2.8″ progressive scan CMOS
Indicators Power
IR cut filter Yes
IR range Up to 30 meter
Lens Board lens, Fixed-focal, f=4mm, F2.0
Minimum illumination (lux) 1/3s to 1/100, 000s
Power supply VDC12V/1A,PoE 802.3af
Resolution 1920 * 1080
Shutter time 1/3 s to 1/100, 000 s, support slow shutter
Standards IEEE 802.3 10-BASE-T, Ethernet
IEEE 802.3u 100-BASE-TX, Fast Ethernet
IEEE 802.3af Power over Ethernet (PoE)
Video format H.264, H.265, MJPEG
Weatherproof rating IP67
Features Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Product weight (kg) 0,28
Color White
EAN 4015867207734
Model Number FCS-5201
Package contents FCS-5201
Quick Installation Guide
Resource CD (User Manual, Utility, QIG)
Fast Ethernet RJ45 RJ-45, 10/100 Mbps Ethernet,PoE
Camera Type Bullet
Resistance Weatherproof
Zoom Type Fixed
IR Leds for night vision Yes
PoE Supported Yes
Max. Resolution 2 Megapixels
IP Camera series GEMINI
Power consumption 12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Dimensions (W x D x H) 69.1 x 66 x 172.7 mm
