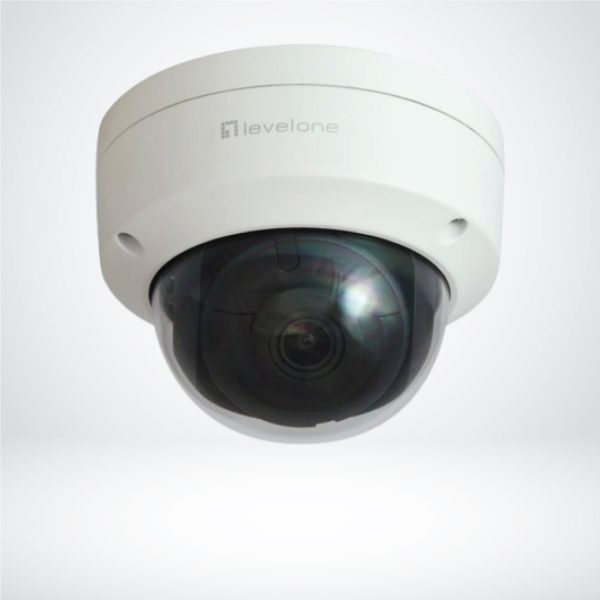

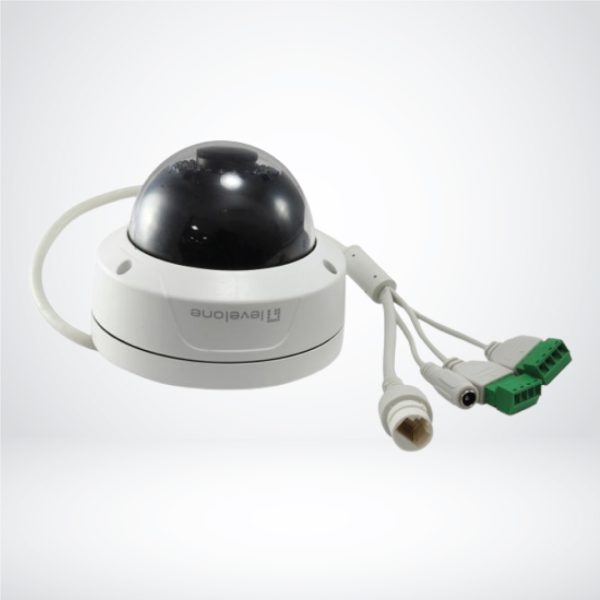

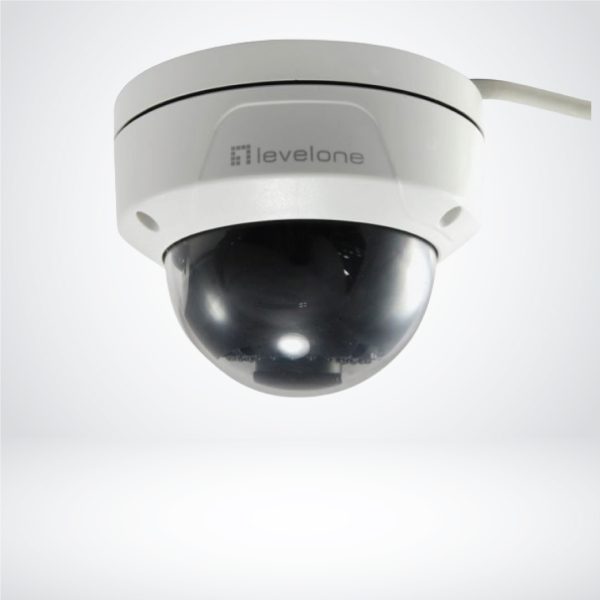

Day & Night Vandalproof IP67 Rated PoE Dome IP Camera – FCS-3402
• Video compression: H.264, H.265, MJPEG
• Weatherproof IP67-rated housing
• Built-in Micro SDHC/SDXC card slot for local storage
• Supports iPhone/Android phone remote viewing over the Internet
- Overview
- Specification
The LevelOne FCS-3402 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 2-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-3402 Should be an essential part of any security deployment that requires smart, reliable outdoor cameras.
Approval and compliance | CE/FCC,IP67, IK10 |
Supported browsers | Internet Explorer 9.0 or newer (full functionality) Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) |
Operating temperature | -30°C ~ 60°C |
Storage temperature | 0°C ~ 95°C |
Angle of View (°) | FOV: 8, vertical FOV: 46, diagonal FOV: 102 |
Digital zoom | 8X |
Image sensor | 1/2.8″ Progressive Scan CMOS |
Indicators | Power |
IR cut filter | Yes |
IR range | Up to 30 meter |
Lens | Board LENS 4mm @F2.0 |
Minimum illumination (lux) | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Mount | Ceiling mount |

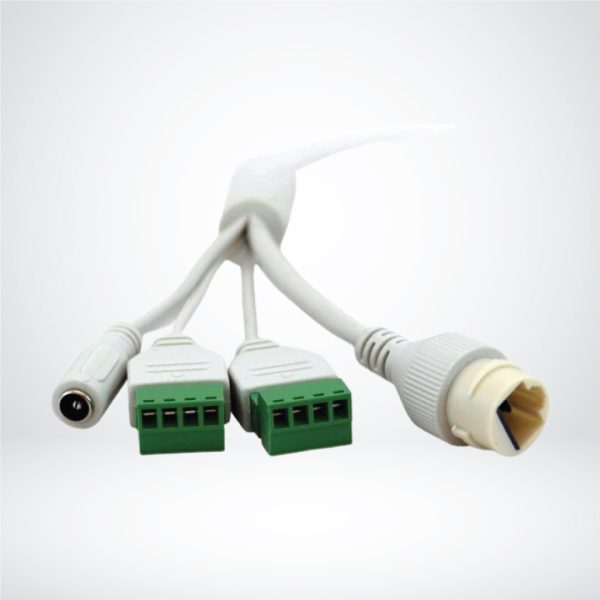

Power supply | PoE/VDC 12V |
Resolution | 50Hz: 25fps (1920 * 1080, 1280 * 960, 1280 * 720) 60Hz: 30fps (1920 * 1080, 1280 * 960, 1280 * 720) |
Shutter time | 1/3 s to 1/100,000 s |
Storage capacity | MicroSDHC /MicroSDXC card slot for local storage |
Standards | IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3af Power over Ethernet (PoE) IEEE 802.1X Network Access Control TCP(IPv6/v4), UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP,FTP,SAMBA UPnP, SNMP, Bonjour |
Video format | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG |
Weatherproof rating | IP66 |
Features | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
Product weight (kg) | 0,5 |
Color | White |
EAN | 4015867207697 |
Model Number | FCS-3402 |
Package contents | FCS-3402 Screw Kit Quick Installation Guide Resource CD (User Manual, Utility, QIG) |
Camera Type | Dome |
Resistance | Weatherproof, Vandalproof |
Zoom Type | Fixed |
2-way Audio | Yes |
IR Leds for night vision | Yes |
PoE Supported | Yes |
Max. Resolution | 2 Megapixels |
IP Camera series | GEMINI |
Power consumption | 12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W |
Dimensions (W x D x H) | 111 x 111 x 82 mm |
